Floor-Gard HD Coating System

High performance, water-based urethane floor systems

Floor-Gard HD High Traffic and Floor-Gard HD Grind & Seal are high-performance floor coating systems with aluminum oxide for added protection against abrasion and impact from carts, equipment, and vehicles.

Product Specifications
Application Methods
Product Literature
Technical Documents
FAQs

System Overview

Neogard Floor-Gard HD systems offer exceptional abrasion and chemical resistance, making them ideal for environments where maintaining a durable and sanitary environment is essential. Its low VOC is well below South Coast AQMD standards, and produces little odor. With a durability four times greater than standard interior topcoats, facilities can achieve a 75% reduction in lifecycle cost by extending repaint cycles and reducing the facilities out-of-service time.

Floor-Gard HD urethanes are available in gloss, semi-gloss, and satin finishes. Also, they are used in our Wall-Gard HD interior wall coating system, allowing applicators to use the same materials on walls and floors, creating a seamless barrier from floor to ceiling.

Selected Physical Properties

Product	Description	Test Method	Results
70900/70910, gloss finish	Taber Abrasion	ASTM D4060	15 mg (1,000 CS-17)
70900/70910, gloss finish	Pencil Hardness	ASTM D3363	4H Gouge
70901/70910, semi-gloss finish	Taber Abrasion	ASTM D4060	67 mg (1,000 CS-17)
70901/70910, semi-gloss finish	Pencil Hardness	ASTM D3363	4H Gouge
70902/70910, satin finish	Taber Abrasion	ASTM D4060	20 mg (1,000 CS-17)
70902/70910, satin finish	Pencil Hardness	ASTM D3363	4H Gouge

Consult Neogard Product Data Sheets and Guide Specifications for a complete list of physical properties.

Use Area:

Hospitals, Education, Food/Beverage, Pharmaceutical, Institutional, Aviation

Type:

Waterborne Urethane

Features:

High durability
Anti-microbial
Cleanable
High chemical resistance
Extreme abrasion resistance

Benefits:

Reduction in lifecyle costs
Does not harbor mold or fungal growth
Scrub resistant finish

Ask us about Floor-Gard HD

Our Neogard Experts team is glad to tell you how Floor-Gard HD is the best coating system to protect your investment.

1-833-443-6735

Floor-Gard HD System Builds

Before application, always check Neogard Product Data Sheets and Guide Specifications for mixing instructions and other important information.

Floor-Gard HD High Traffic

Floor-Gard Grind & Seal

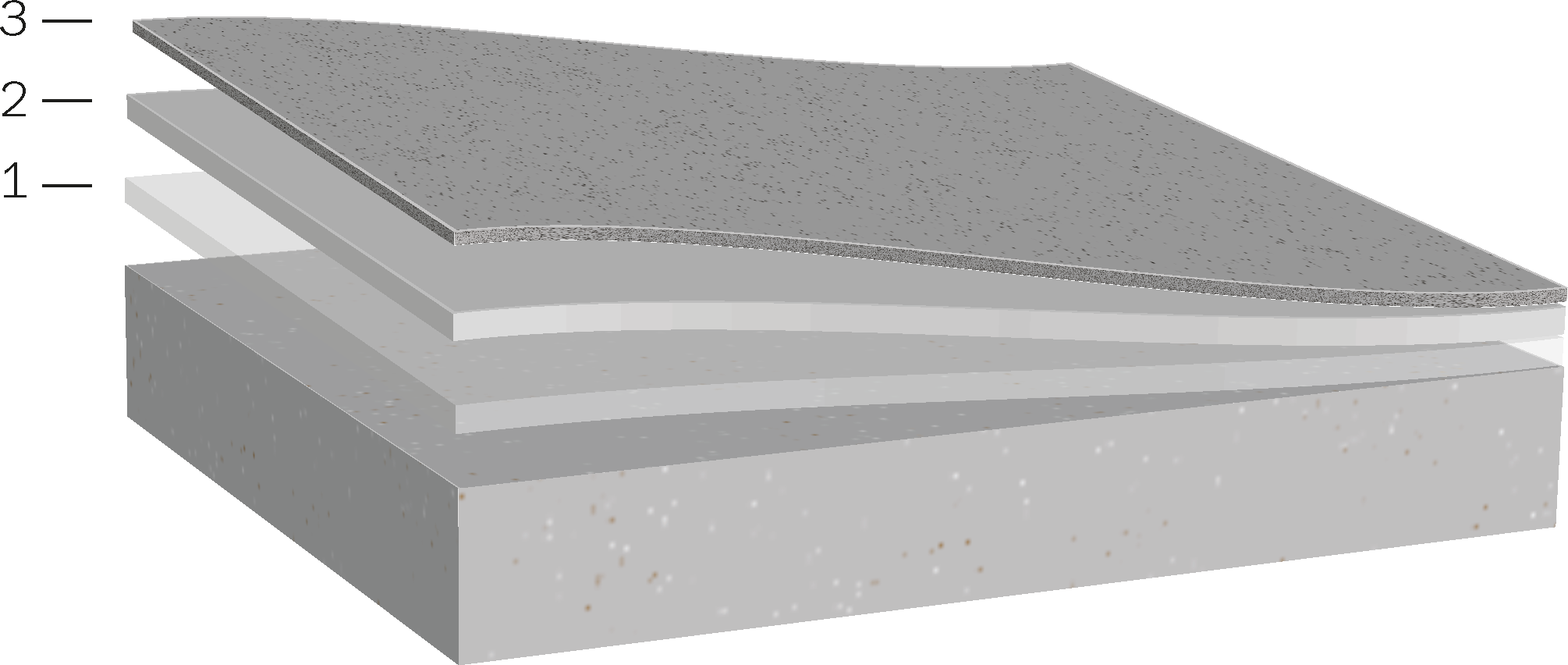

Floor-Gard HD High Traffic

Coat	Product	Coverage Rate	Mils WFT/DFT
3 - Topcoat	Floor-Gard HD urethane + #220 aluminum oxide*	350-400 sf/gal	NA
2 - Base	70714/70715	200 sf/gal	8/8
1 - Primer	70714/70715	200 sf/gal	8/8

*Add 24 oz of aluminum oxide per mixed gallon of Floor-Gard HD urethane.

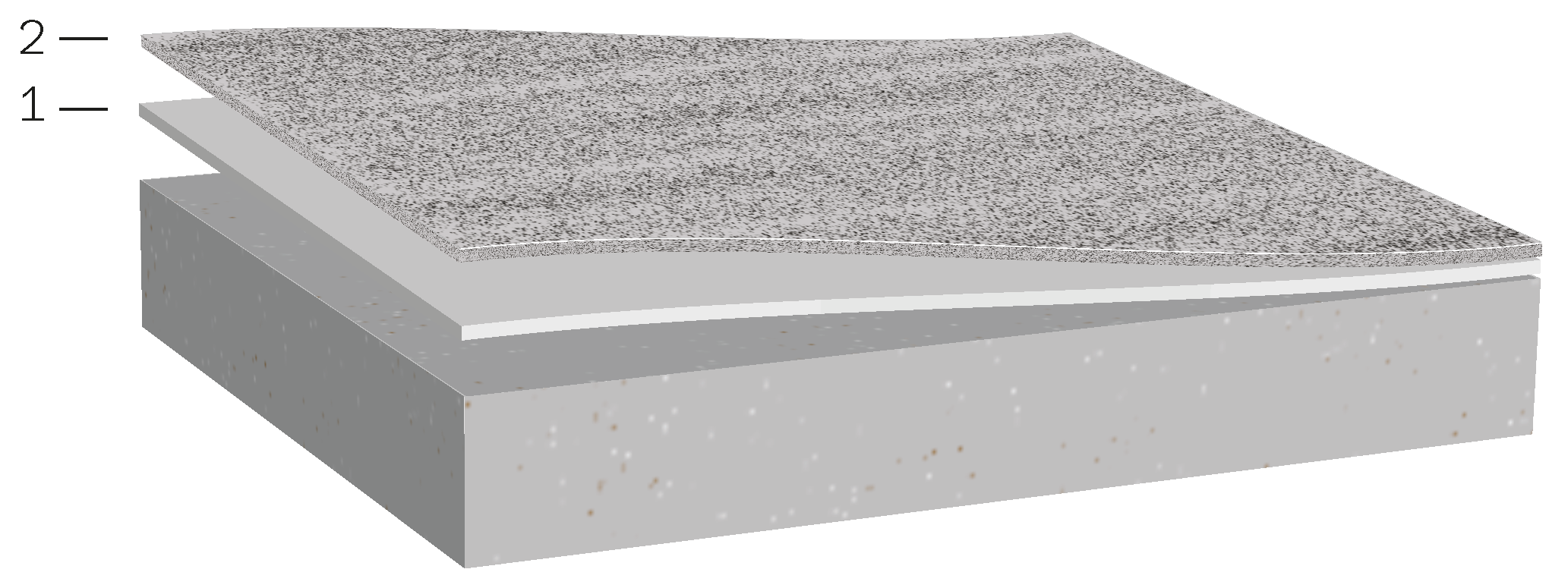

Floor-Gard HD Grind & Seal

Coat	Product	Coverage Rate	Mils WFT/DFT
2 - Topcoat	Floor-Gard HD urethane + #220 aluminum oxide	400-450 sf/gal	NA
1 - Base	Floor-Gard HD urethane	200-267 sf/gal	8-6/6-3

Product Literature

Files may be downloaded individually or in a submittal package. Choose a language to select a file. Select one file and click the download button to the right, or select multiple files and click the “Download Selected” button below.

Technical Documents

selected

Safety Data Sheets (SDS)

FAQs

What areas of my facility are appropriate for this system?

Any areas where extreme abrasion resistance is needed including production, warehouse, hallways, common areas, bathrooms.

How will this system reduce life cycle costs?

System topcoat has abrasion resistance twice that of any generic/typical topcoat utilizing aluminum oxide to protect integrity of system throughout its life.

How can this system be used for recoating existing floor systems?

May be applied over sound, high performance coating systems by sanding/abrading/patching and installation of intermediate and topcoats.

How long will the system last with daily cleaning?

5 years plus with normal abuse and wear. System is sustainable by sand/reapplication of topcoats.

What are the general recommendations for applying this system?

Surface prep of CSP3, squeegee/backroll, apply within system guidelines for each step.

You can trust Floor-Gard HD in your next project

High-performance protection tested under the harshest environments. Floor-Gard HD was developed tooffer exceptional abrasion and chemical resistance, making them ideal for environments where maintaining a durable and sanitary environment is essential.
