FTS MMA Systems

Product	Description	Test Method	Results
FTS Industrial & Decorative	Tensile strength	ASTM D638	3,850 psi
FTS Industrial & Decorative	Tensile modulus	ASTM D638	470,000
FTS Industrial & Decorative	Hardness	ASTM D2240	0.85
FTS Industrial & Decorative	Compressive Strength	ASTM C109	8,000
FTS Industrial & Decorative	Linear Coefficient of Thermal Expansion	ASTM D696	3.5 x 10^-5 in./in. ̊F
FTS Industrial & Decorative	Water Vapor Transmission	DIN 53122	1.43 g/cm-hr-mm HG x 10^-9

Product

Description

Test Method

Results

FTS Industrial & Decorative

Tensile strength

ASTM D638

3,850 psi

FTS Industrial & Decorative

Tensile modulus

ASTM D638

470,000

FTS Industrial & Decorative

Hardness

ASTM D2240

0.85

FTS Industrial & Decorative

Compressive Strength

ASTM C109

8,000

FTS Industrial & Decorative

Linear Coefficient of Thermal Expansion

ASTM D696

3.5 x 10^-5 in./in. ̊F

FTS Industrial & Decorative

Water Vapor Transmission

DIN 53122

1.43 g/cm-hr-mm HG x 10^-9

FTS MMA System Builds

Before application, always check Neogard Product Data Sheets and Guide Specifications for mixing instructions and other important information.

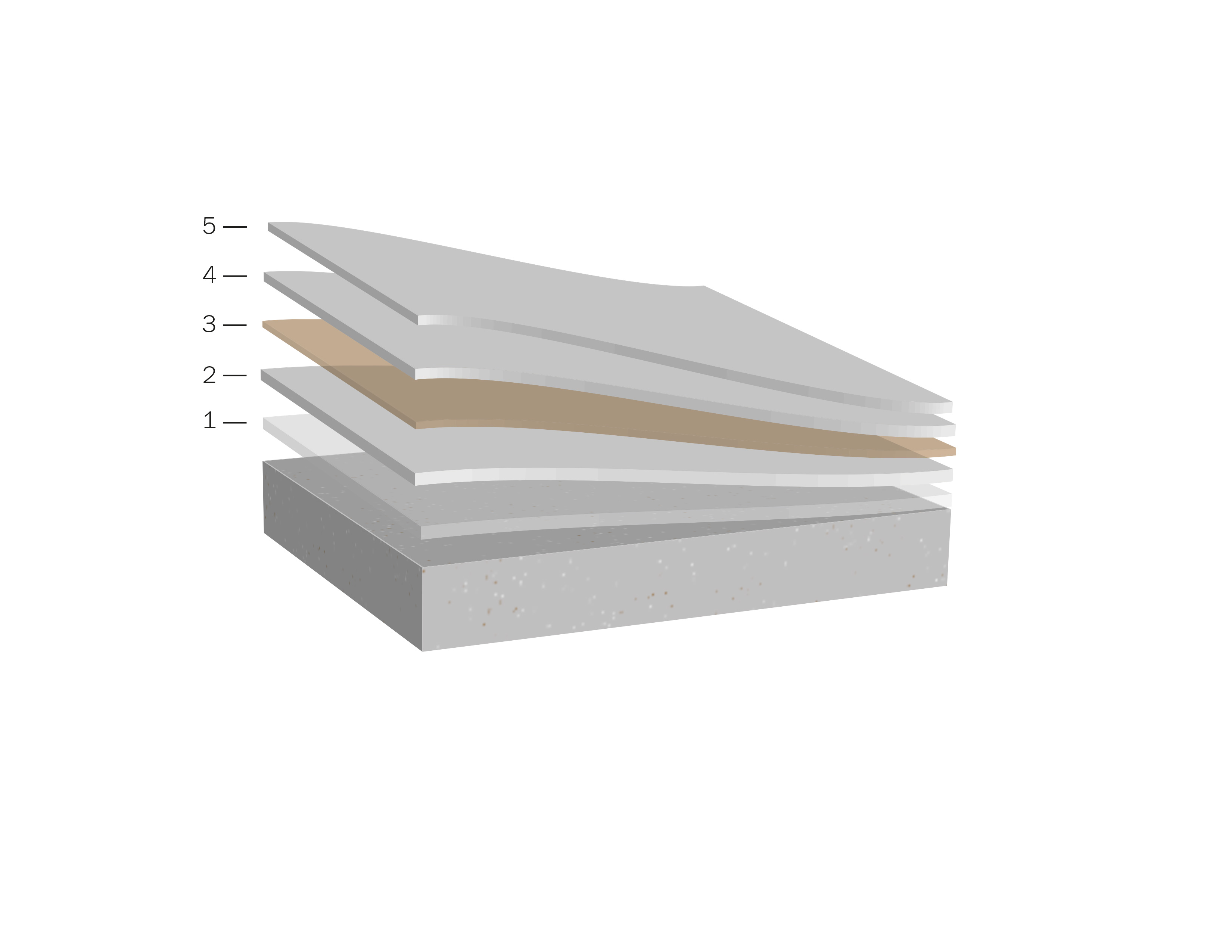

FTS HD Self-Leveling Roll Coat System

FTS Self-Leveling Heavy Duty Membrane

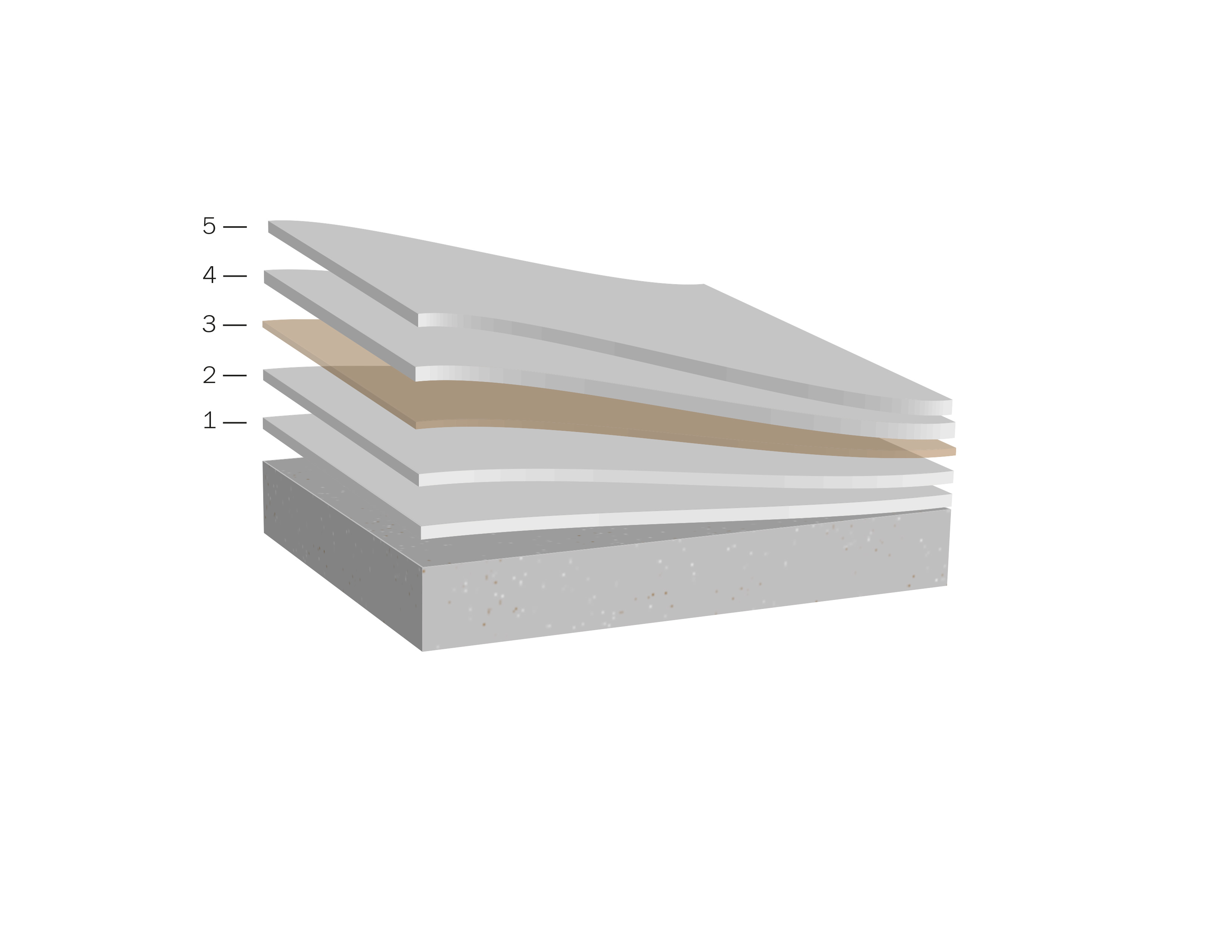

FTS Self-Leveling Heavy Flex Coat

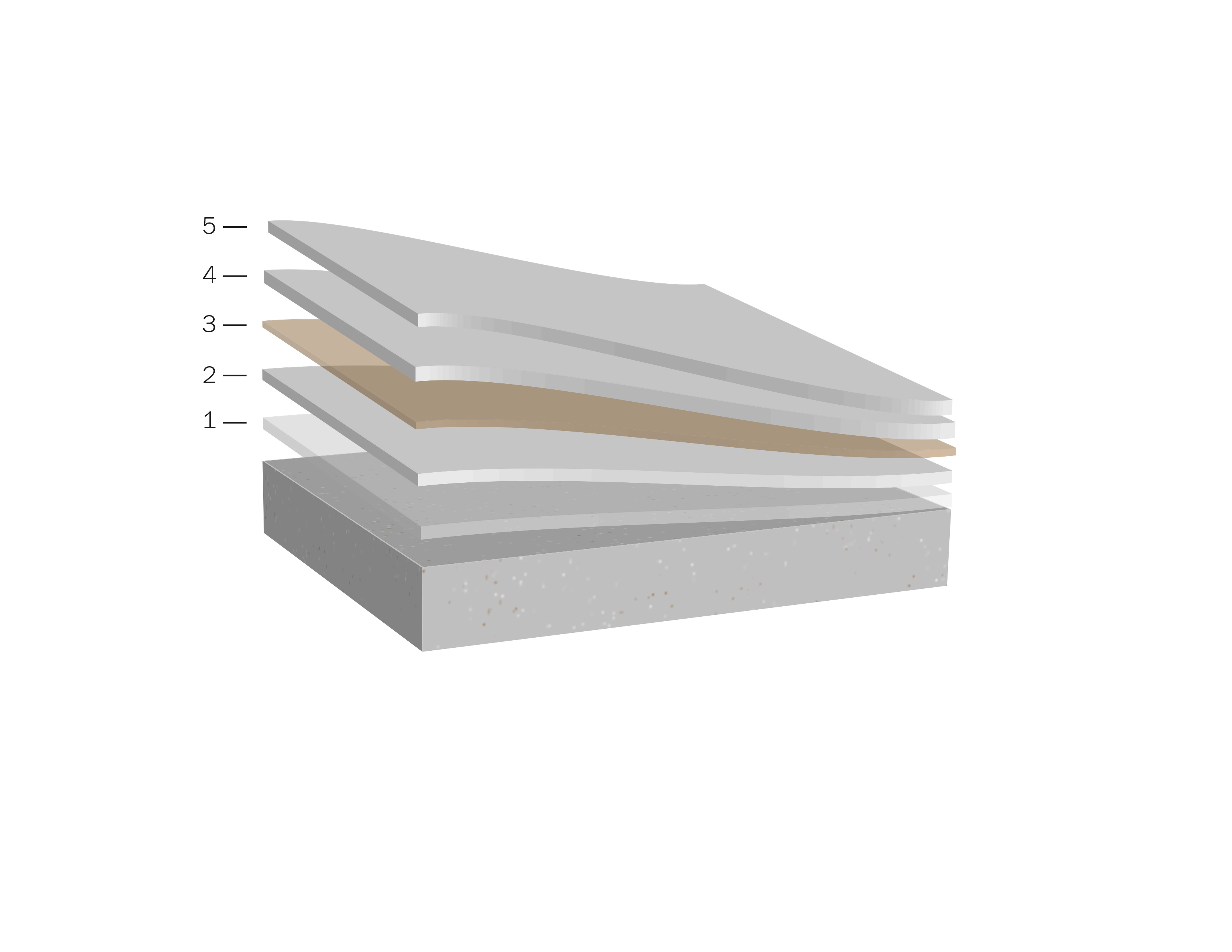

FTS Self-Leveling Heavy Duty Solid Color

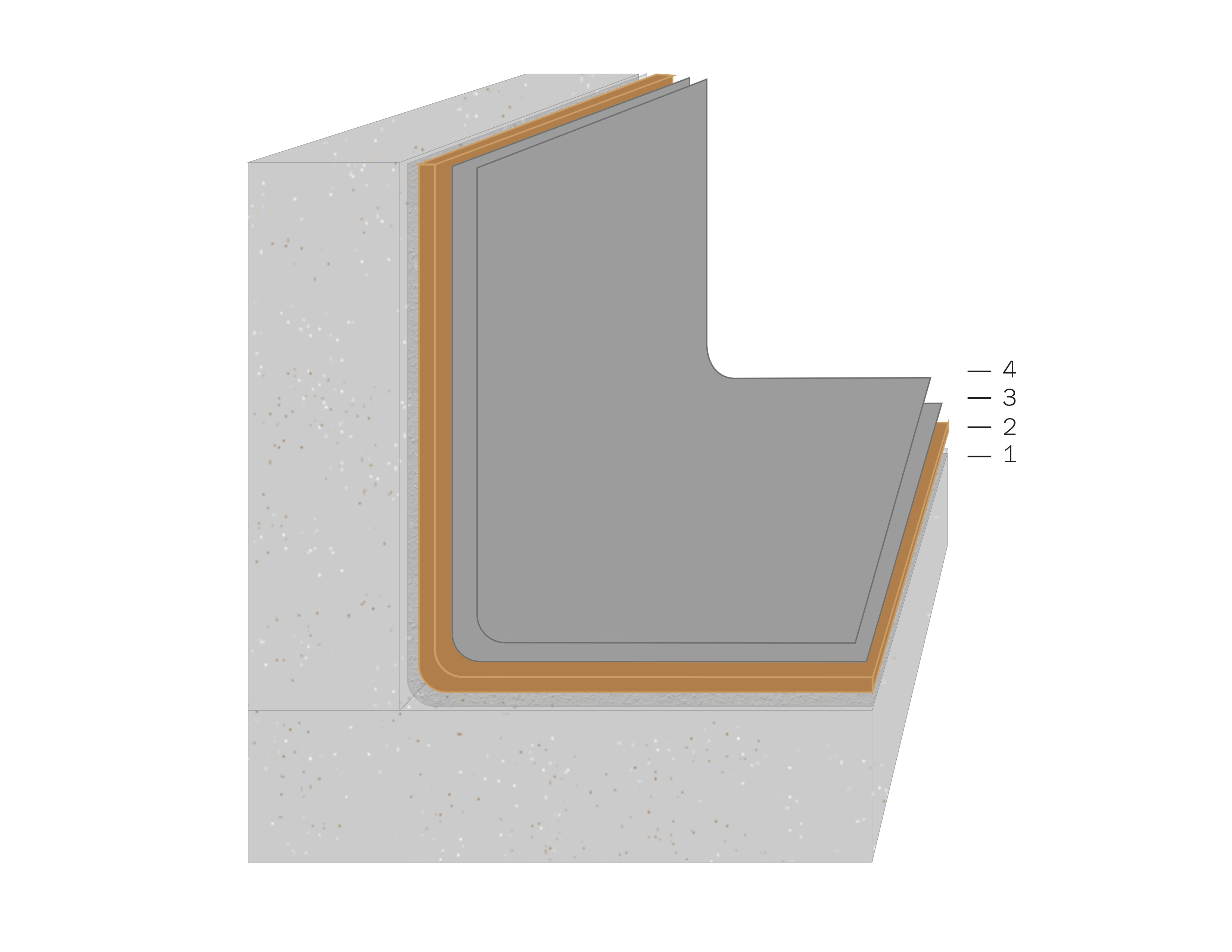

FTS Solid Color Cove Base

FTS Neoflake SL

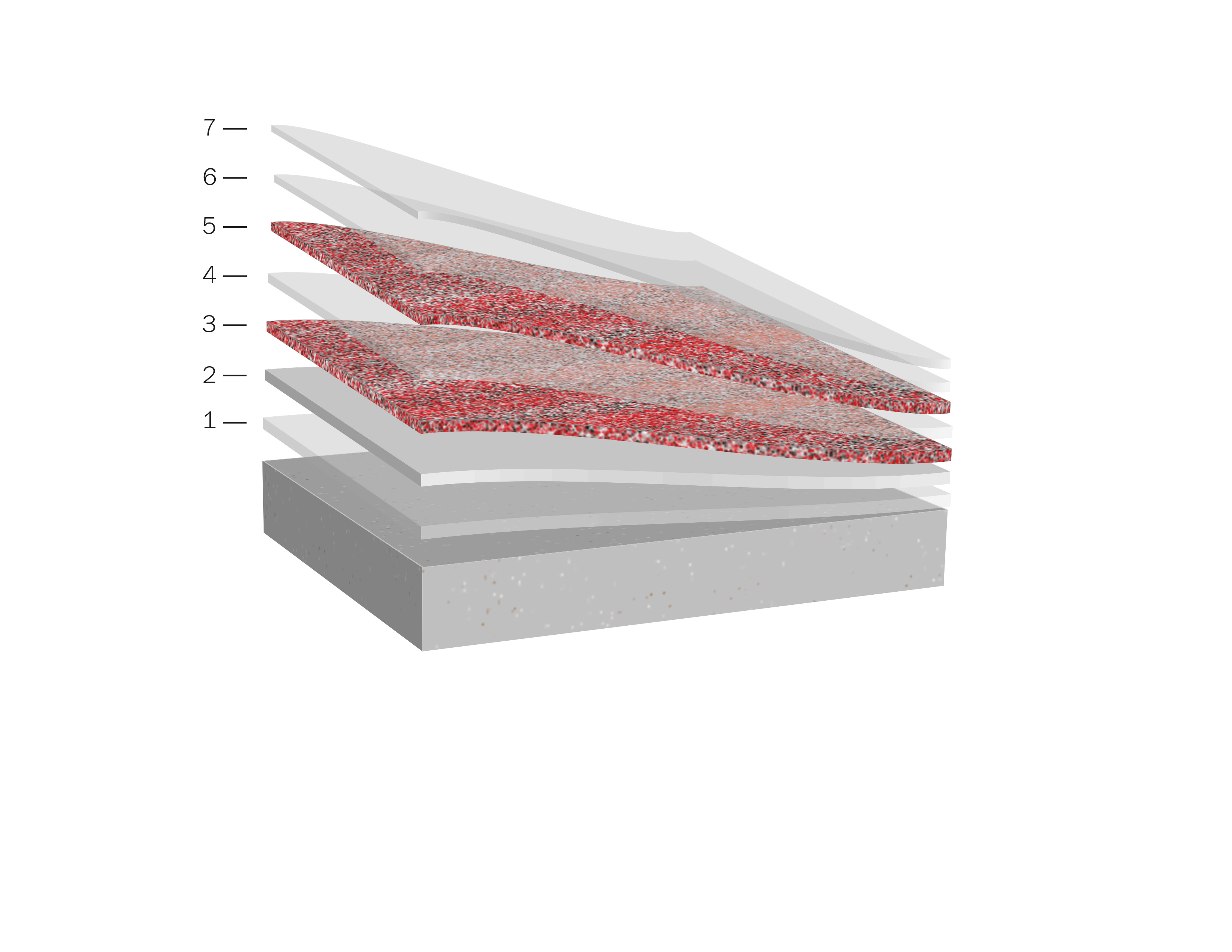

FTS NeoQuartz SL

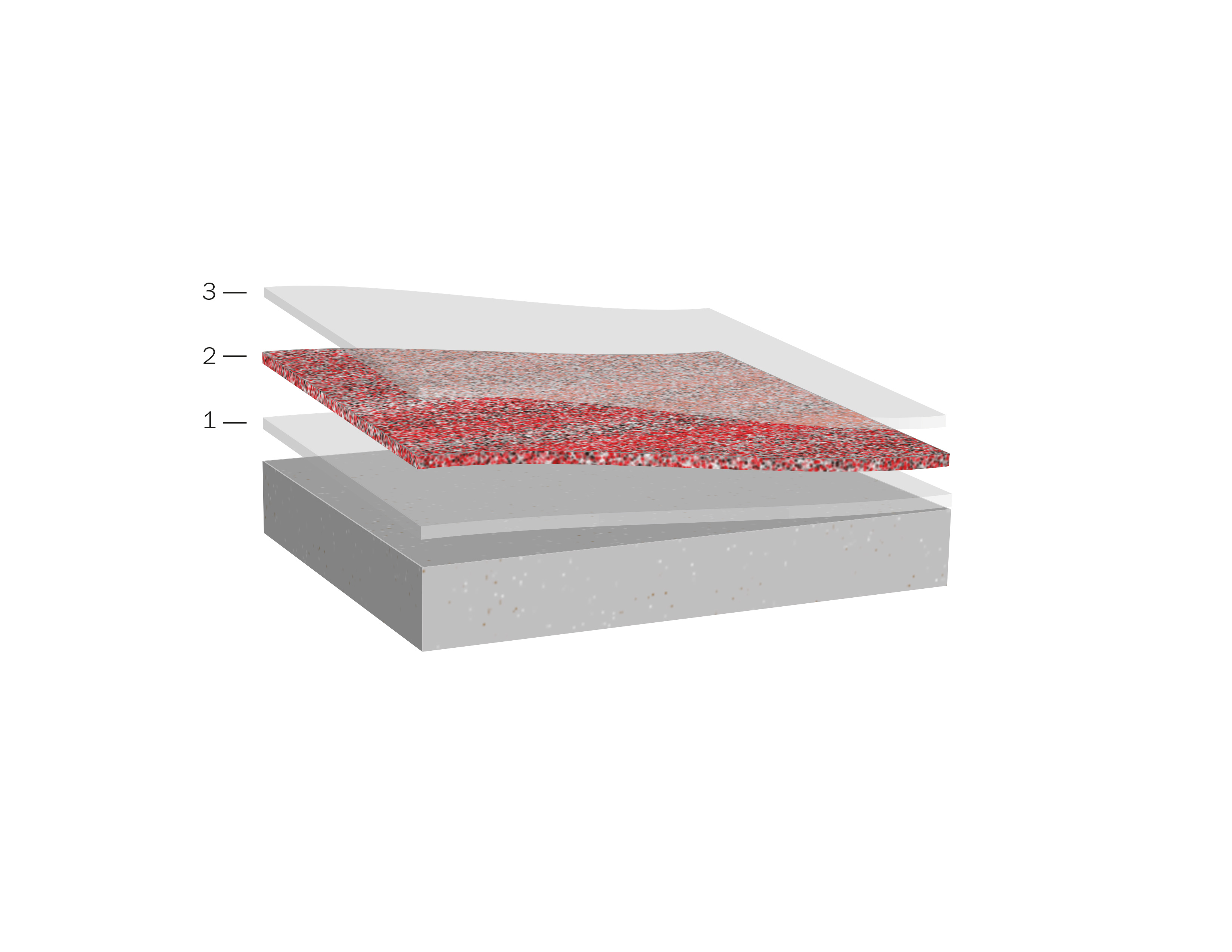

FTS Neoquartz Trowel

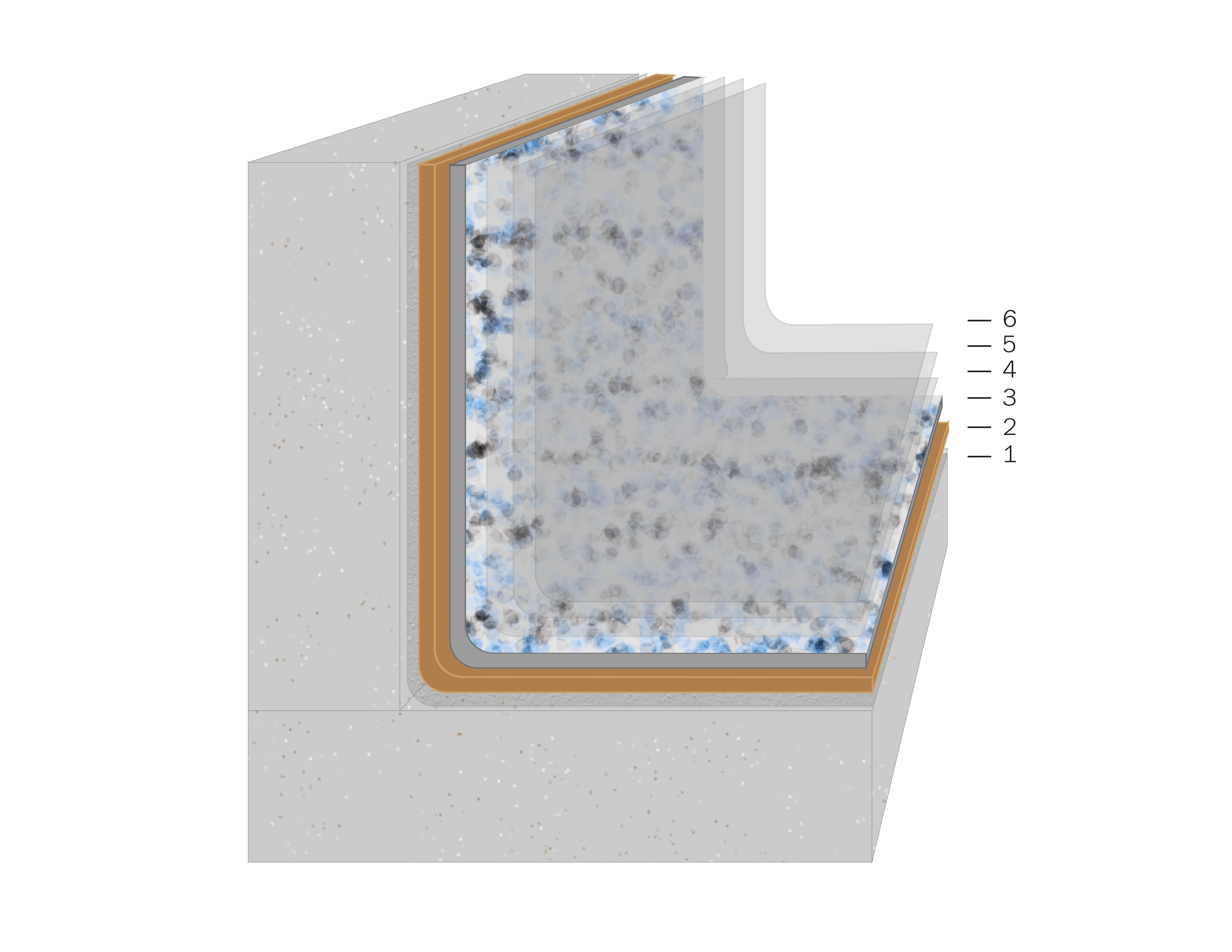

FTS Neoflake Cove Base

FTS Neoquartz Cove Base

Coat	Product	Coverage Rate
5 - Topcoat	FTS 450	100 SF/Gal; 80% FTS 100:20% FTS 101 by vol.
4 - Topcoat	FTS 450	1 gallon FTS 300 @ 20 mils
3 - Sand Broadcast
2 - Body Resin	FTS 300	1 gallon FTS 300 @ 20 mil
1 - Primer + Adhesion Promoter	FTS 100/FTS 101	100 SF/Gal; 80% FTS 100:20% FTS 101 by vol.

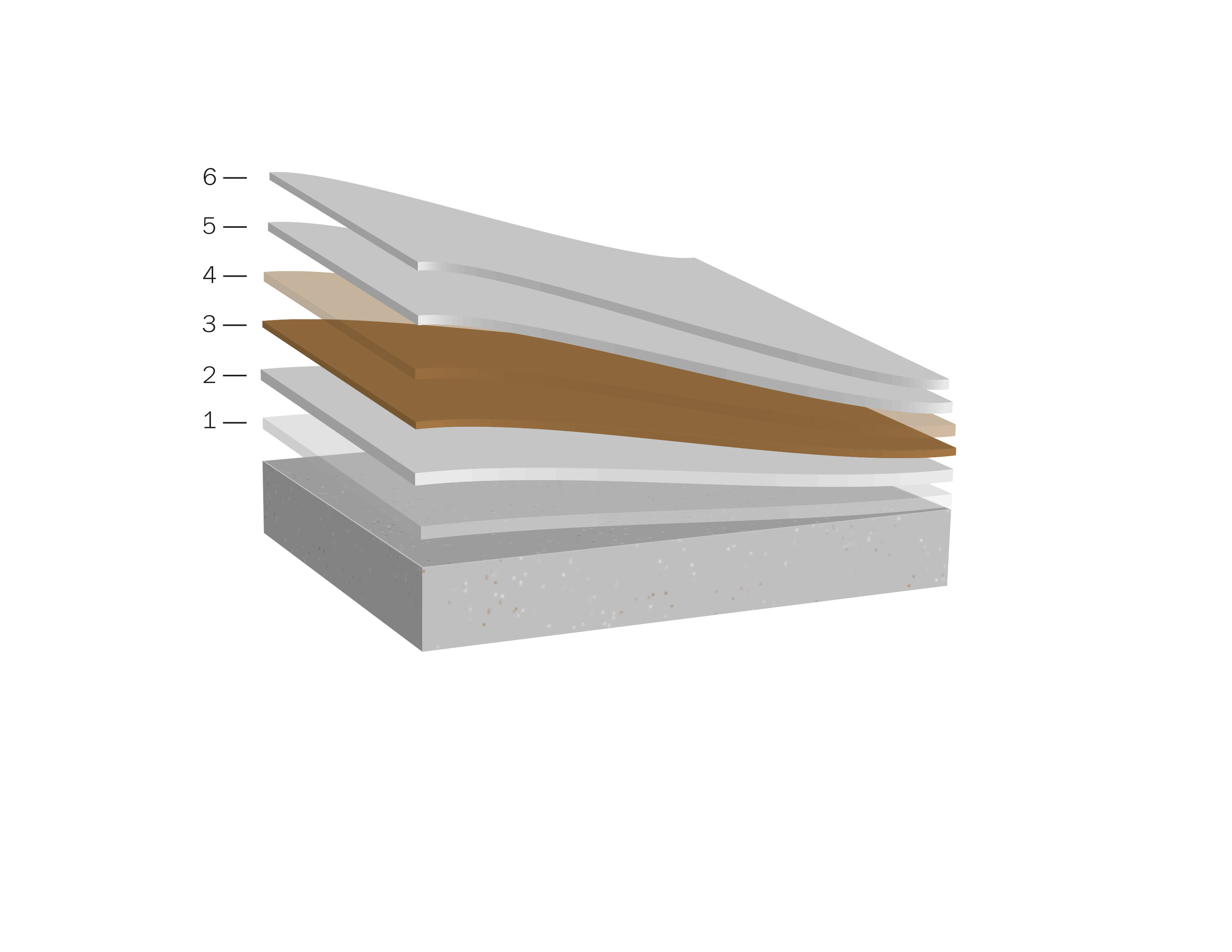

Coat	Product	Coverage Rate
6 - Topcoat	FTS 450	1 gallon FTS 450 @ 100 SF
5 - Topcoat	FTS 450	1 gallon FTS 450 @ 80 SF
4 - Sand Broadcast
3- 1/8" FTS 200 Self-Leveling	FTS 200	(1.75 gallons FTS 200 + 1 bag FTS 40# Filler Bag + 8 oz. Pigment) = 40 sq. ft @ 1/8"
2 - Flex Resin	FTS 200	1 gallon FTS 200 @ 46 SF, 35 mils
1 - Primer + Adhesion Promoter	FTS 100/FTS 101	100 SF/Gal; 80% FTS 100:20% FTS 101 by vol.

Coat	Product	Coverage Rate
5 - Topcoat	FTS 450	1 gallon FTS 450 @ 100 SF
4 - Topcoat	FTS 450	1 gallon FTS 450 @ 80 SF
3 - Sand Broadcast
2 - Flex Resin	FTS 200	.75 gallons FTS 200 + 1 bag FTS 40# Filler Bag + 8 oz. Pigment= 40 sq. ft @ 1/8"
1 - Primer + Adhesion Promoter	FTS 100/FTS 101	100 SF/Gal; 80% FTS 100:20% FTS 101 by vol.

Coat	Product	Coverage Rate
5 - Topcoat	FTS 450	1 gallon FTS 450 @ 100 SF
4 - Topcoat	FTS 450	1 gallon FTS 450 @ 80 SF
3 - Sand Broadcast
2 - Body Resin	FTS 300	1.75 gallons FTS 300 + 1 bag FTS 40# Filler Bag + 8 oz. Pigment= 40 sq. ft @ 1/8"
1 - Primer + Adhesion Promoter	FTS 100/FTS 101	100 SF/Gal; 80% FTS 100:20% FTS 101 by vol.

Coat	Product	Coverage Rate
4 - Topcoat	FTS 450	1 gallon FTS 450 @ 100 SF
3 - Topcoat	FTS 450	1 gallon FTS 450 @ 80 SF
2 - 3/16" FTS 301 Sand Cove	FTS 301	2 quarts FTS 301 + 3 quarts CQ or sand= 12 LF @ 4"
1 - Primer + Adhesion Promoter	FTS 100/FTS 101	100 SF/Gal; 80% FTS 100:20% FTS 101 by vol.

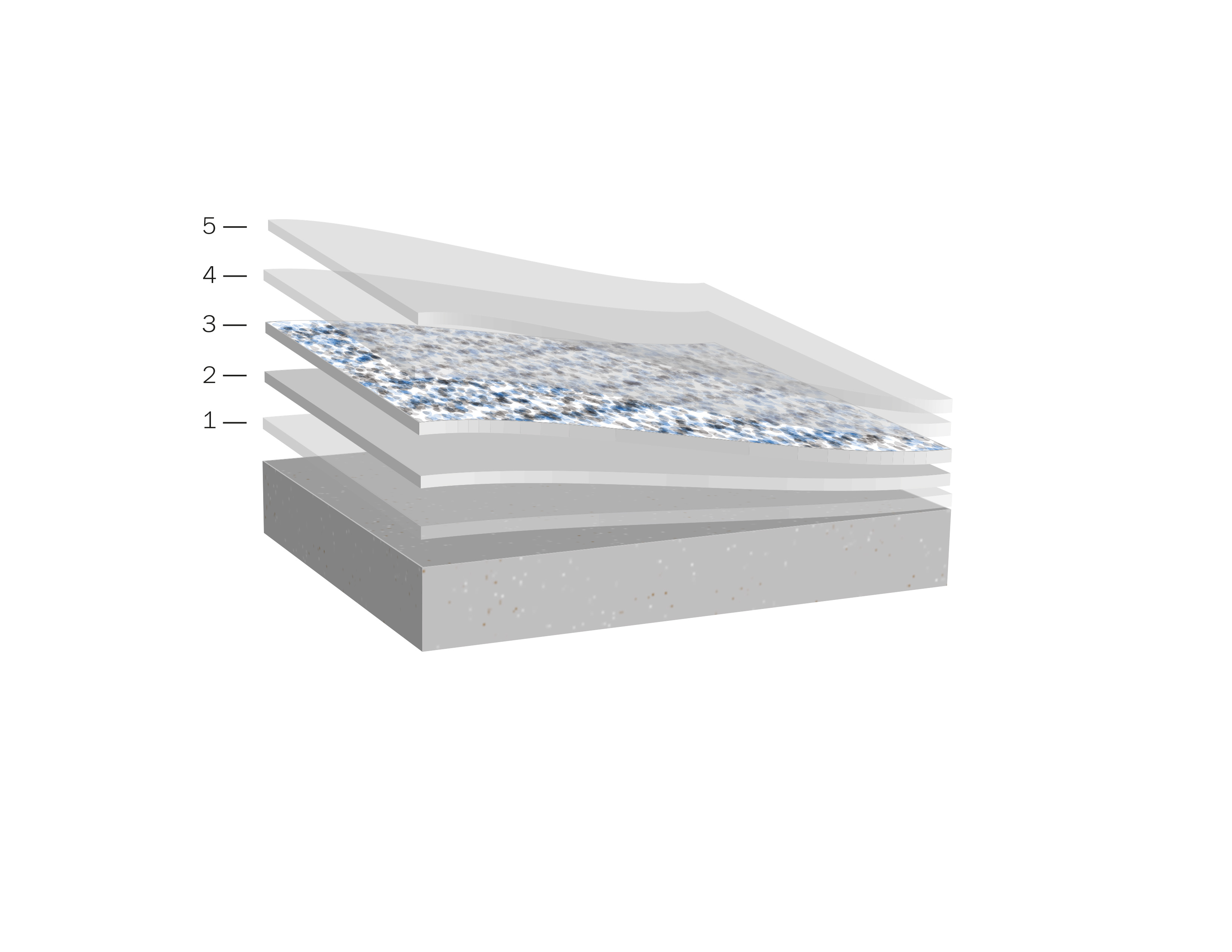

Coat	Product	Coverage Rate
5 - Topcoat	FTS 400	1 gallon FTS 450 @ 100 SF
4 - Topcoat	FTS 400	1 gallon FTS 450 @ 80 SF
3- Neogard Flake Broadcast		0.15 lbs per SF
2 - Body Resin	FTS 300	1.75 gallons FTS 300 + 1 bag FTS 40# Filler Bag + 8 oz. Pigment= 40 sq. ft @ 1/8"
1 - Primer + Adhesion Promoter	FTS 100/FTS 101	100 SF/Gal; 80% FTS 100:20% FTS 101 by vol.

Coat	Product	Coverage Rate
7- Topcoat	FTS 400	1 gallon FTS 400 @ 100 SF.
6 - Topcoat	FTS 400	1 gallon FTS 400 @ 80 SF.
5 - Neogard Quartz Broadcast		0.5 lbs per SF
4 - Roll Coat	FTS 300	1 gallon FTS 300 @ 20 mils
3 - Neogard Quartz Broadcast		0.5 lbs per SF
2 - Body Resin	FTS 300	1.75 gallons FTS 300 + 1 bag FTS 40# Filler Bag + 8 oz. Pigment= 40 sq. ft @ 1/8"
1 - Primer + Adhesion Promoter	FTS 100/FTS 101	100 SF/Gal; 80% FTS 100:20% FTS 101 by vol.

Coat	Product	Coverage Rate
3- Topcoat	FTS 400	1 gallon FTS 400 @ 100 SF
2 - FTS Color Quartz Trowel	FTS 300	2 gallons FTS 300 + 1 bag Neoquartz = 50 SF. @ 1/8"
1 - Primer + Adhesion Promoter	FTS 100/FTS 101	100 SF/Gal; 80% FTS 100:20% FTS 101 by vol.

Coat	Product	Coverage Rate
6 -Topcoat	FTS 400	1 gallon FTS 400 @ 100 SF.
5 - Topcoat	FTS 400	1 gallon FTS 400 @ 80 SF.
4 - FTS Neoflake broadcast		Broadcast to rejection
3 - FTS 302 for flake	FTS 302	1 quartz FTS 302 + 1 v. oz Pigment = 45 LF @ 4"
2 - 3/16" FTS 301 Sand Cove	FTS 301	2 quarts FTS 301 + 3 quarts CQ or sand = 12 LF @ 4"
1 - Primer + Adhesion Promoter	FTS 100/FTS 101	100 SF/Gal; 80% FTS 100:20% FTS 101 by vol.

Coat	Product	Coverage Rate
4 -Topcoat	FTS 400	1 gallon FTS 400 @ 100 SF.
3 - Topcoat	FTS 400	1 gallon FTS 400 @ 80 SF.
2 - 3/16" FTS 301 Color Quartz Cove	FTS 301	2 quarts FTS 301 + 3 quarts CQ or sand = 12 LF @ 4"
1 - Primer + Adhesion Promoter	FTS 100/FTS 101	100 SF/Gal; 80% FTS 100:20% FTS 101 by vol.

FTS MMA Systems

1/8” to 3/8” MMA flooring systems

Neogard FTS systems are available with various topcoats and aggregates for any application, from industrial to decorative.

System Overview

Selected Physical Properties

Use Area:

Type:

Features:

Benefits:

Ask us about our FTS MMA Systems

FTS MMA System Builds

You can trust FTS MMA Systems in your next project
