Neoflake Systems

Thin film, 100% solids epoxy or polyaspartic systems with integral color flakes

Neoflake and Neoflake RTS (Return To Service) systems create a vibrant, seamless and resilient flooring surface. They provide an exceptionally durable and long lasting floor while also looking great.

Product Specifications
Application Methods
Product Literature
Technical Documents
FAQs

System Overview

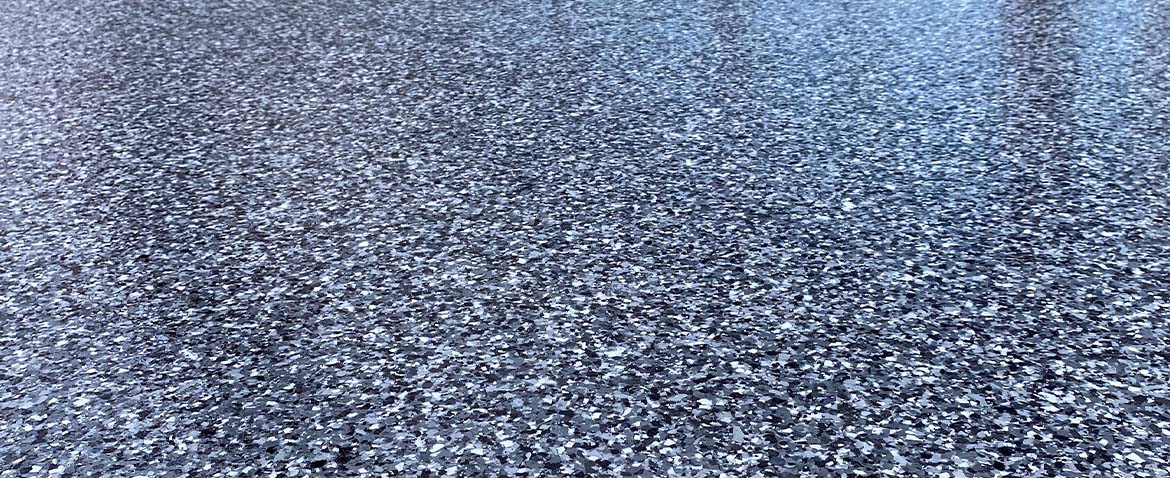

Neogard Neoflake systems are visually appealing, high strength, slip resistant and abrasion resistant flooring systems. They are ideal for garage floors, commercial kitchens, locker rooms, sports venues, automotive showrooms and numerous other applications. These easy-to-clean systems can be customized to virtually any color blend.

Our standard Neoflake system utilizes our 70714/70715 and 70734/70735 epoxies. Neoflake RTS is a fast return-to-service system in two versions: Series 1 uses 70714/70715 as a primer and base coat, 70869/70819 Polyaspartic as seal coats, and random broadcast flakes; Series 2 is entirely composed of 70869/70819 Polyaspartic, and features flakes broadcast to full rejection.

Selected Physical Properties

Product	Description	Test Method	Results
70734/70735 epoxy	Compressive Strength	ASTM D695	11,000 psi
70817/70818 CRU	Taber Abrasion	ASTM D4060	23 mg/1,000 CS-17
70817/70818 CRU	Anti-Microbial	JIS Z 2801-2010	Pass
70869/70819 Polyaspartic	Taber Abrasion	ASTM	55 mg/1,000 CS-17
70869/70819 Polyaspartic	Anti-Microbial	JIS Z 2801-2010	Pass

Consult Neogard Product Data Sheets and Guide Specifications for a complete list of physical properties.

Use Area:

Pedestrian Walkways, Automotive, Retail, Stadiums, Restaurants, Manufacturing

Type:

Epoxy/Polyaspartic

Features:

Enhances appearance
Economical
Low VOC
Easy to clean
Slip resistant

Benefits:

Customized color blends
Seamless
Anti-microbial

Ask us about Neoflake

Our Neogard Experts team is glad to tell you how Neoflake is the best coating system to protect your investment.

1-833-443-6735

Neoflake System Build

Before application, always check Neogard Product Data Sheets and Guide Specifications for mixing instructions and other important information.

Neoflake Broadcast to Rejection

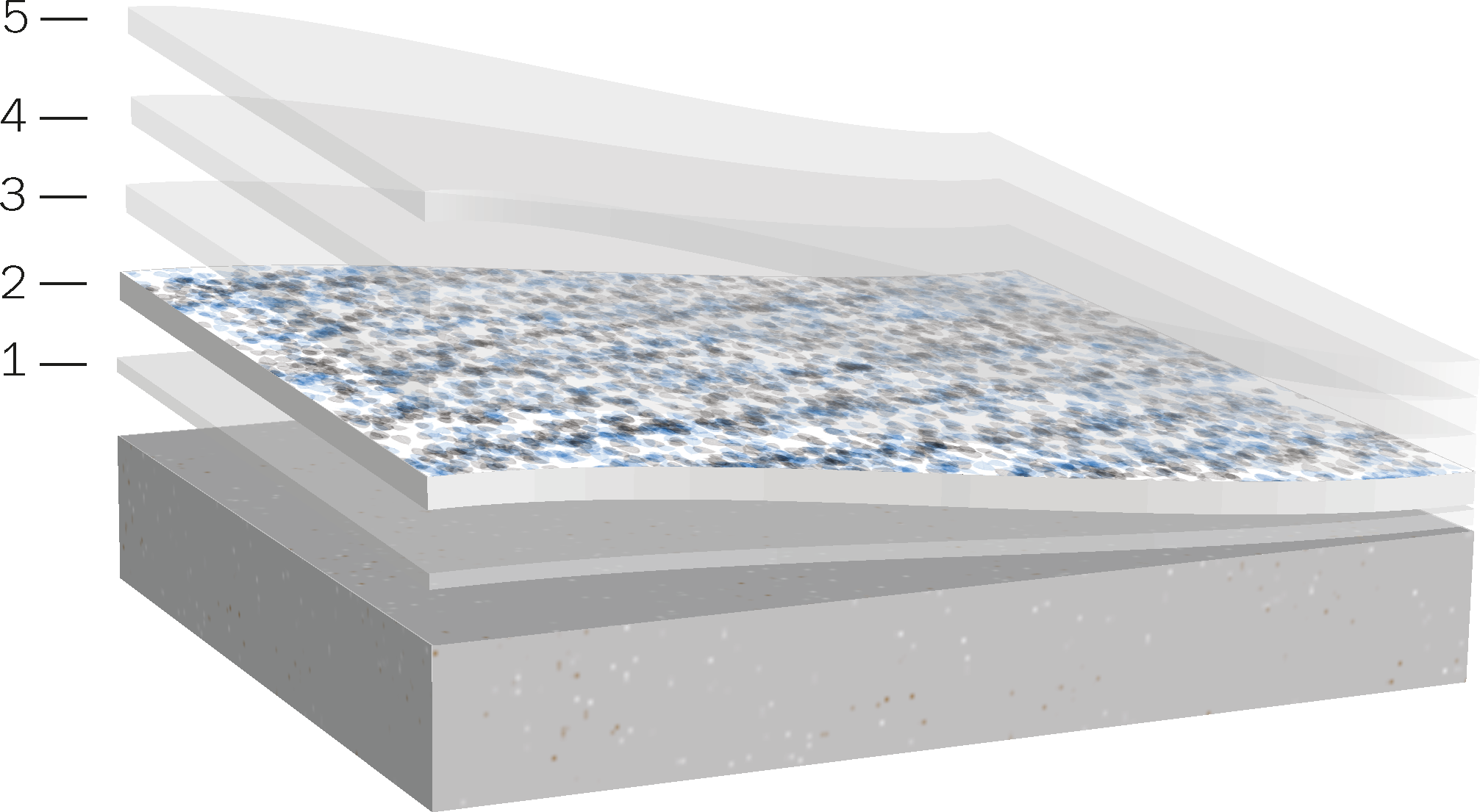

Neoflake RTS Series 1

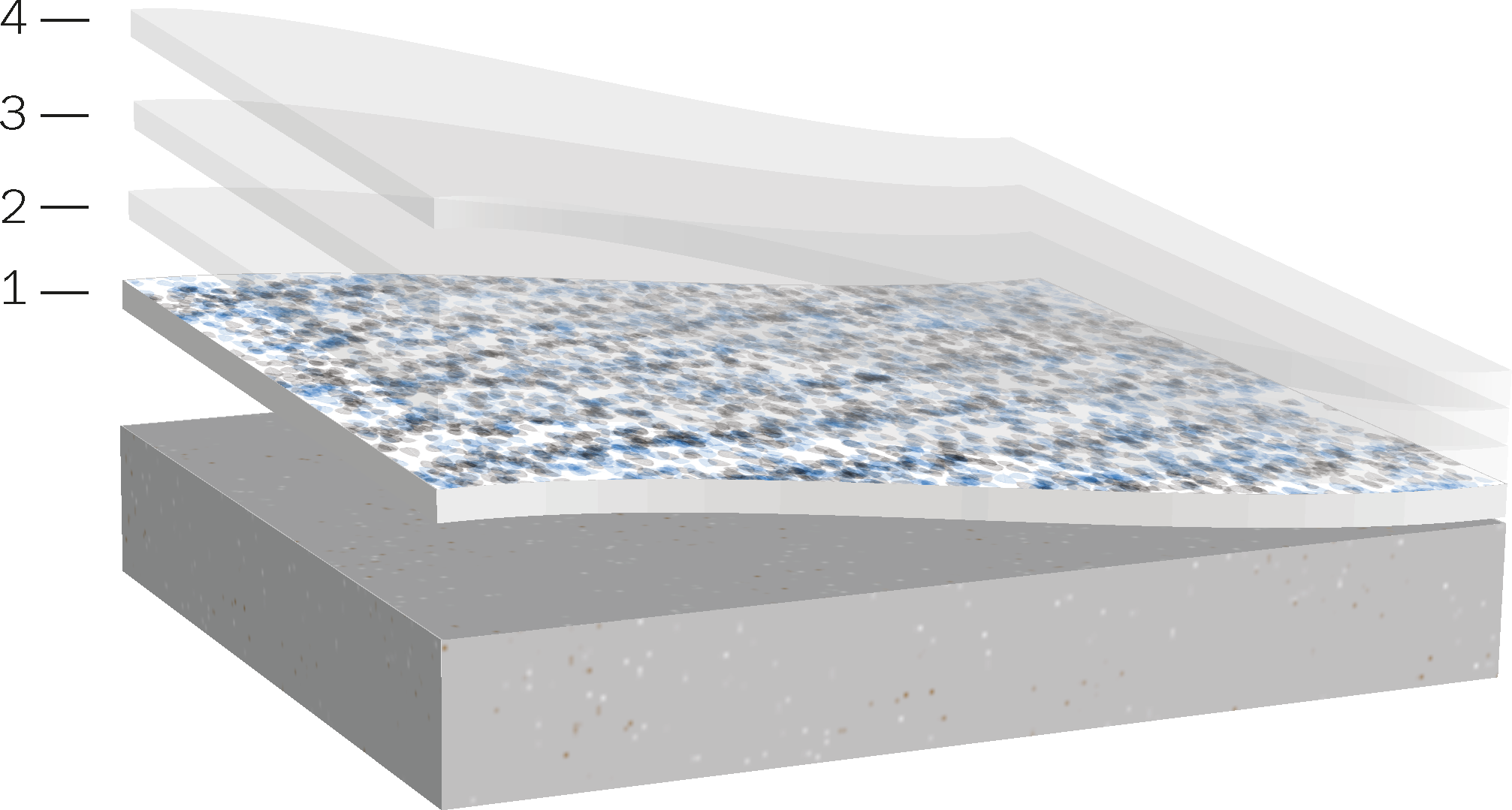

Neoflake RTS Series 2

Neoflake

Coat	Product	Coverage Rate	Mils WFT/DFT
6 - Optional Texture	70734/70735 or 70817/70818 + 86500 Neogrip Spheres*	400 sf/gal	4/4
5 - 2nd Seal	70734/70735 epoxy 70817/70818 CRU 70902/70910 urethane	200 sf/gal	8/8
4 - 1st Seal	70734/70735 epoxy 70817/70818 CRU 70902/70910 urethane	200 sf/gal	8/8
3 - Aggregate	Color Flakes	Full Rejection	16/16
2 - Base	70714/70715	100 sf/gal	16/16
1 - Primer	70714/70715	200 sf/gal	8/8

*See Guide Specification for instructions for adding 86500 Neogrip Spheres.

Neoflake RTS Series 1

Coat	Product	Coverage Rate	Mils WFT/DFT
6 - Optional Texture	70869/70819 Polyaspartic 86500 Neogrip Spheres*	400 sf/gal	4/4
5 - 2nd Seal	70869/70819 Polyaspartic	200 sf/gal	8/8
4 - 1st Seal	70869/70819 Polyaspartic	200 sf/gal	8/8
3 - Aggregate	Color Flakes	Desired coverage	16/16
2 - Base	70714/70715	100 sf/gal	16/16
1 - Primer	70714/70715	200 sf/gal	8/8

*See Guide Specification for instructions for adding 86500 Neogrip Spheres.

Neoflake RTS Series 2

Coat	Product	Coverage Rate	Mils WFT/DFT
5 - Optional Texture	70869/70819 Polyaspartic 86500 Neogrip Spheres*	400 sf/gal	4/4
4 - 2nd Seal	70869/70819 Polyaspartic	200 sf/gal	8/8
3 - 1st Seal	70869/70819 Polyaspartic	200 sf/gal	8/8
2 - Aggregate	Color Flakes	Full rejection	16/16
1 - Base	70869/70819 Polyaspartic	100 sf/gal	16/16

*See Guide Specification for instructions for adding 86500 Neogrip Spheres.

Product Literature

Files may be downloaded individually or in a submittal package. Choose a language to select a file. Select one file and click the download button to the right, or select multiple files and click the “Download Selected” button below.

Technical Documents

selected

Safety Data Sheets (SDS)

FAQs

What areas of my facility are appropriate for this system?

Decorative flake systems are appropriate for bathrooms, locker rooms, common areas, showroom floors, etc.

What are the limitations of the system?

May be used in conjunction with Moisture Mitigating Primer and not recommended for installation above 80% relative humidity.

How can this system be used for recoating existing flooring systems?

May be applied over sound, high performance coating systems by sanding/abrading and patching any holes/cracks.

How long will the system last with daily use?

3-5 years with normal abuse and wear. System is sustainable by sand/rebroadcast and topcoating.

What are the general recommendations for applying this system?

Surface prep of CSP3, squeegee/backroll, apply within system guidelines for each step.

You can trust Neoflake in your next project

High-performance protection tested under the harshest environments. Neoflake was developed for for garage floors, commercial kitchens, locker rooms, sports venues, automotive showrooms and numerous other applications. These easy-to-clean systems can be customized to virtually any color blend.
