NeoQuartz Systems

Decorative systems with 100% solids epoxy or polyaspartic and color quartz aggregate

NeoQuartz flooring systems are both attractive and functional, making them a popular option for a variety of industrial, commercial, and institutional settings.

Product Specifications
Application Methods
Product Literature
Technical Documents
FAQs

System Overview

Neogard NeoQuartz systems can be tailored to the level of surface texture specific for any need. Decorative quartz systems are a great option for wet areas, such as showers and pool decks, or locations in need of more traction while providing durability. Blended color or solid color quartz granules distributed throughout the coating create a variety of visually pleasing options to fit almost any setting, and require little maintenance.

Four systems are available:

NeoQuartz Broadcast, an epoxy system with indoor or outdoor seal coats.
NeoQuartz HD, a heavy-duty system with epoxy mortar.
NeoQuartz Trowel, with epoxy-quartz mortar and indoor or outdoor seal coats.
NeoQuartz Broadcast RTS, an all-polyaspartic system for fast return-to-service.

Selected Physical Properties

Product	Description	Test Method	Results
70734/70735 epoxy	Compressive Strength	ASTM D695	11,000 psi
70817/70818 CRU	Taber Abrasion	ASTM D4060	23 mg/1,000 CS-17
70817/70818 CRU	Anti-Microbial	JIS Z 2801-2010	Pass
70869/70819 Polyaspartic	Taber Abrasion	ASTM	55 mg/1,000 CS-17
70869/70819 Polyaspartic	Anti-Microbial	JIS Z 2801-2010	Pass

Consult Neogard Product Data Sheets and Guide Specifications for a complete list of physical properties.

Use Area:

Pedestrian Walkways, Automotive, Retail, Stadiums, Restaurants, Manufacturing

Type:

Epoxy/Polyaspartic

Features:

Enhances appearance
Economical
Low VOC
Easy to clean
Slip and skid resistant

Benefits:

Customized color blends
Seamless
Anti-microbial

Ask us about NeoQuartz

Our Neogard Experts team is glad to tell you how NeoQuartz is the best coating system to protect your investment.

1-833-443-6735

NeoQuartz System Builds

Before application, always check Neogard Product Data Sheets and Guide Specifications for mixing instructions and other important information.

NeoQuartz Broadcast

NeoQuartz HD

NeoQuartz Trowel

NeoQuartz Broadcast RTS

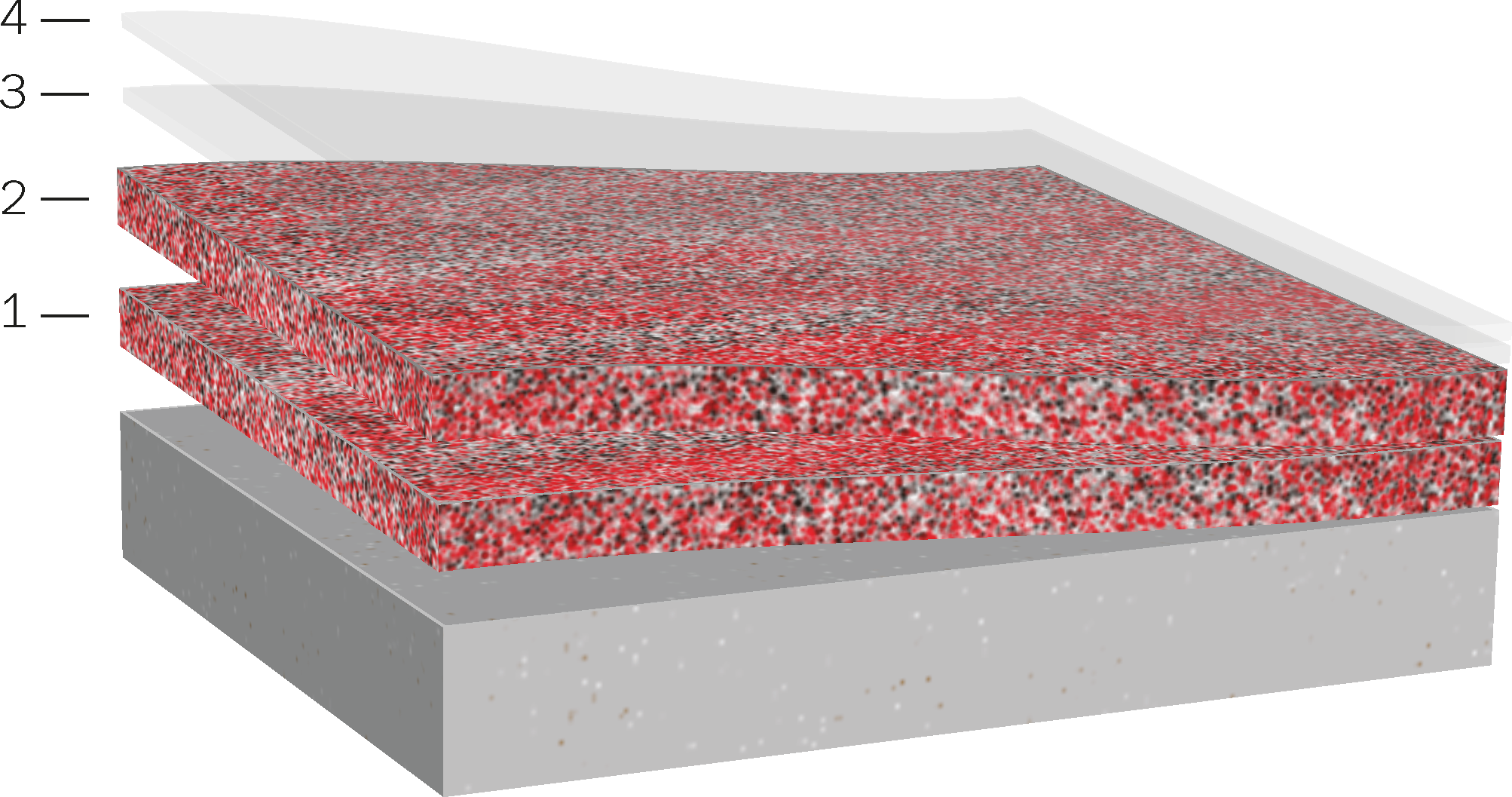

NeoQuartz Broadcast

Coat	Product	Coverage Rate	Mils WFT/DFT
4 - 2nd Seal*	70817/70818 CRU or 70734/70735 epoxy	200 sf/gal	8/8
3 - 1st Seal*	70817/70818 CRU or 70734/70735 epoxy	160 sf/gal	10/10
2 - 2nd Base	70714/70715 + Color Quartz	80 sf/gal 50 lbs/100 sf	20/20 (1/16" w/aggregate)
1 - 1st Base	70714/70715 + Color Quartz	80 sf/gal 50 lbs/100 sf	20/20 (1/16" w/aggregate)

*Exterior applications, 70817/70818; interior applications, 70734/70735.

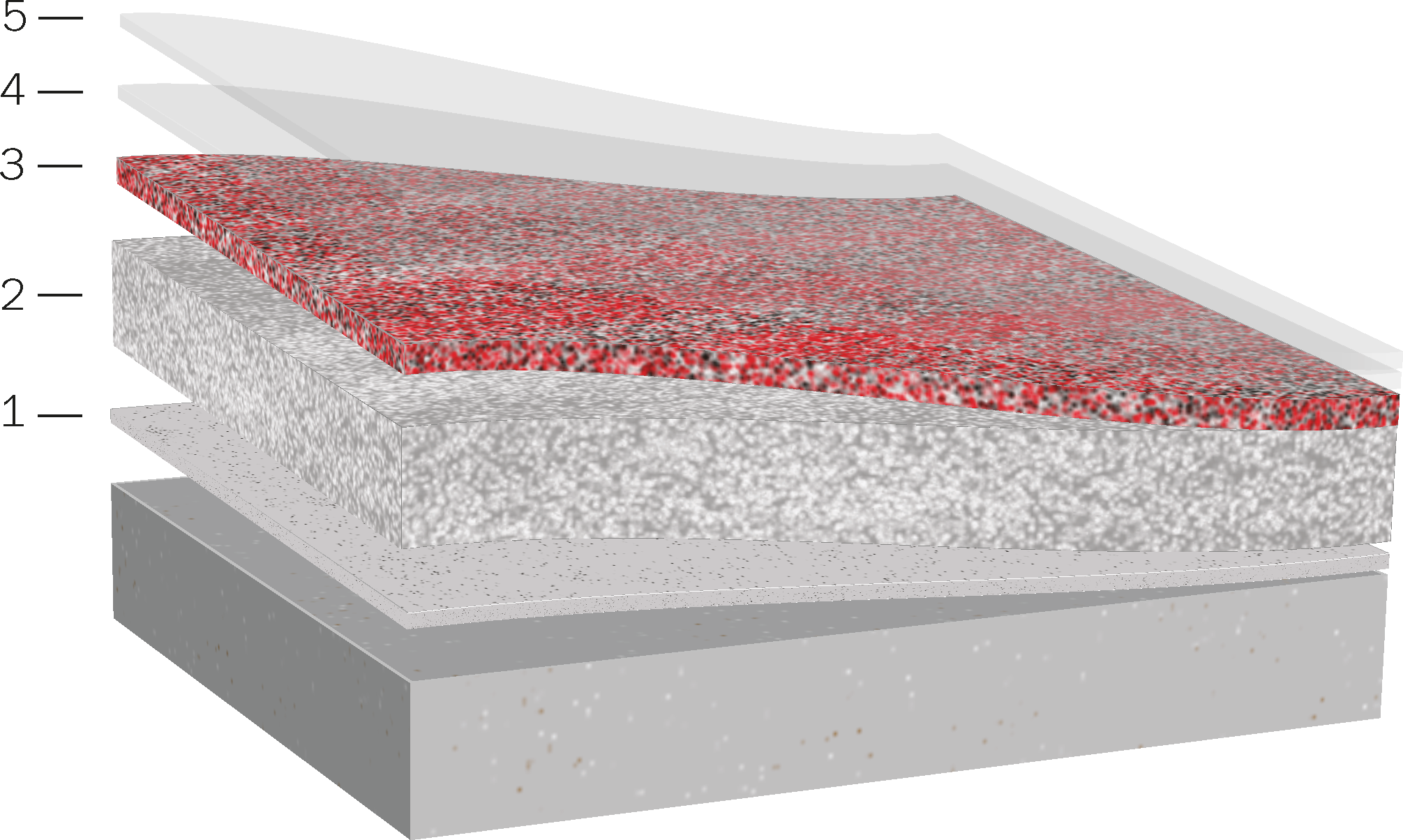

NeoQuartz HD

Coat	Product	Coverage Rate	Mils WFT/DFT
5 - 2nd Seal	70734/70735 or 70869/70819	200 sf/gal	8/8
4 - 1st Seal	70734/70735 or 70869/70819	200 sf/gal	8/8
3 - Broadcast	70714/70715 + Color quartz aggregate	80 sf/gal 50 lbs/100 sf	20/20
2 - Mortar	70714/70715 mixed w/CG Mortar 67CUS9980	Specified Thickness
1 - Primer	70714/70715 + CG Mortar 67CUS99980	200 sf/gal 20 lbs/100 sf	8/8

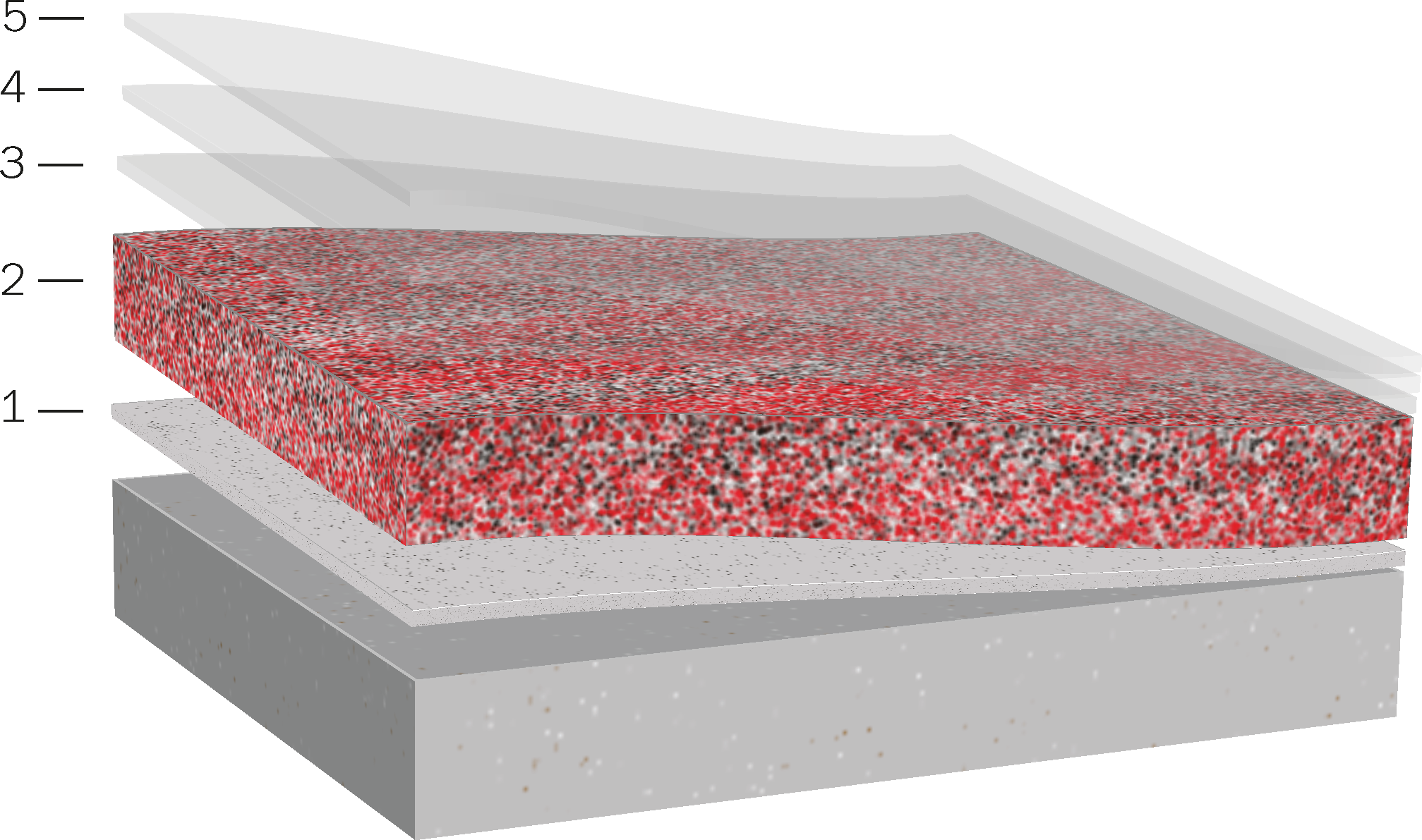

NeoQuartz Trowel

Coat	Product	Coverage Rate	Mils WFT/DFT
5 - 2nd Seal*	70734/70735 epoxy or 70817/70818 CRU	200 sf/gal	8/8
4 - 1st Seal*	70734/70735 epoxy or 70817/70818 CRU	200 sf/gal	8/8
3 - Grout	70734/70735	200 sf/gal	8/8
2 - Mortar	70714/70715 mixed w/Color quartz	Specified Thickness
1 - Primer	70714/70715 + 86364 sand aggregate	200 sf/gal 20 lbs/100 sf	8/8

*Exterior applications, 70817/70818; interior applications, 70734/70735.

NeoQuartz Broadcast RTS

Coat	Product	Coverage Rate	Mils WFT/DFT
4 - 2nd Seal	70869/70819 Polyaspartic	200 sf/gal	8/8
3 - 1st Seal	70869/70819 Polyaspartic	160 sf/gal	10/10
2 - 2nd Base	70869/70819 Polyaspartic + Color Quartz	80 sf/gal 50 lbs/100 sf	20/20 (1/16" w/aggregate)
1 - 1st Base	70869/70819 Polyaspartic + Color Quartz	80 sf/gal 50 lbs/100 sf	20/20 (1/16" w/aggregate)

Product Literature

Files may be downloaded individually or in a submittal package. Choose a language to select a file. Select one file and click the download button to the right, or select multiple files and click the “Download Selected” button below.

Technical Documents

selected

Safety Data Sheets (SDS)

FAQs

What areas of my facility are appropriate for this system?

Decorative quartz systems are appropriate for bathrooms, locker rooms, common areas, showroom floors, etc.

What are the limitations of the system?

May be used in conjunction with Moisture Mitigating Primer and not recommended for installation above 80% relative humidity.

How can this system be used for recoating existing flooring systems?

May be applied over sound, high performance coating systems by sanding/abrading and patching any holes/cracks.

How long will the system last with daily use?

3-5 years with normal abuse and wear. System is sustainable by sand/rebroadcast and topcoating.

What are the general recommendations for applying this system?

Surface prep of CSP3, squeegee/backroll, apply within system guidelines for each step.

You can trust NeoQuartz in your next project

High-performance protection tested under the harshest environments. NeoQuartz systems are a great option for wet areas, such as showers and pool decks, or locations in need of more traction while providing durability.
