Novolac Systems

Superior chemical resistant, 100% solids Novolac epoxy systems with optional texture coat

Novolac systems provide outstanding chemical, thermal shock, and impact resistance for industrial and institutional applications.

Product Specifications
Application Methods
Product Literature
Technical Documents
FAQs

System Overview

Neogard Novolac systems are suited for industrial and institutional applications. Compared to standard epoxies, Novolac epoxy systems provide outstanding chemical resistance, along with higher operating temperature and impact resistance.

Selected Physical Properties

Product	Description	Test Method	Results
70704/70705 Novolac	Compressive Strength	ASTM D695	10,000 psi
70704/70705 Novolac	Shore D	ASTM D2240	84
70704/70705 Novolac	Taber Abrasion	ASTM D4060	40 mg/10,000 CS-17
70704/70705 Novolac	Chemical Resistance	See Chemical Resistance Chart

Consult Neogard Product Data Sheets and Guide Specifications for a complete list of physical properties.

Use Area:

Kitchens, bakeries, food processing, animal research, chemical storage rooms, battery charging areas

Type:

Novolac Epoxy

Features:

Thin film to 1/8” system
May be used for recoating existing systems
Higher operating temperature
Optional texture

Benefits:

Customizable cost savings
Improve chemical and impact resistance
Appropriate around ovens, areas of higher constant temperature
Improves safety and chemical resistance

Ask us about Novolac

Our Neogard Experts team is glad to tell you how Novolac is the best coating system to protect your investment.

1-833-443-6735

Novolac System Builds

Before application, always check Neogard Product Data Sheets and Guide Specifications for mixing instructions and other important information.

Novolac 32

Novolac 125

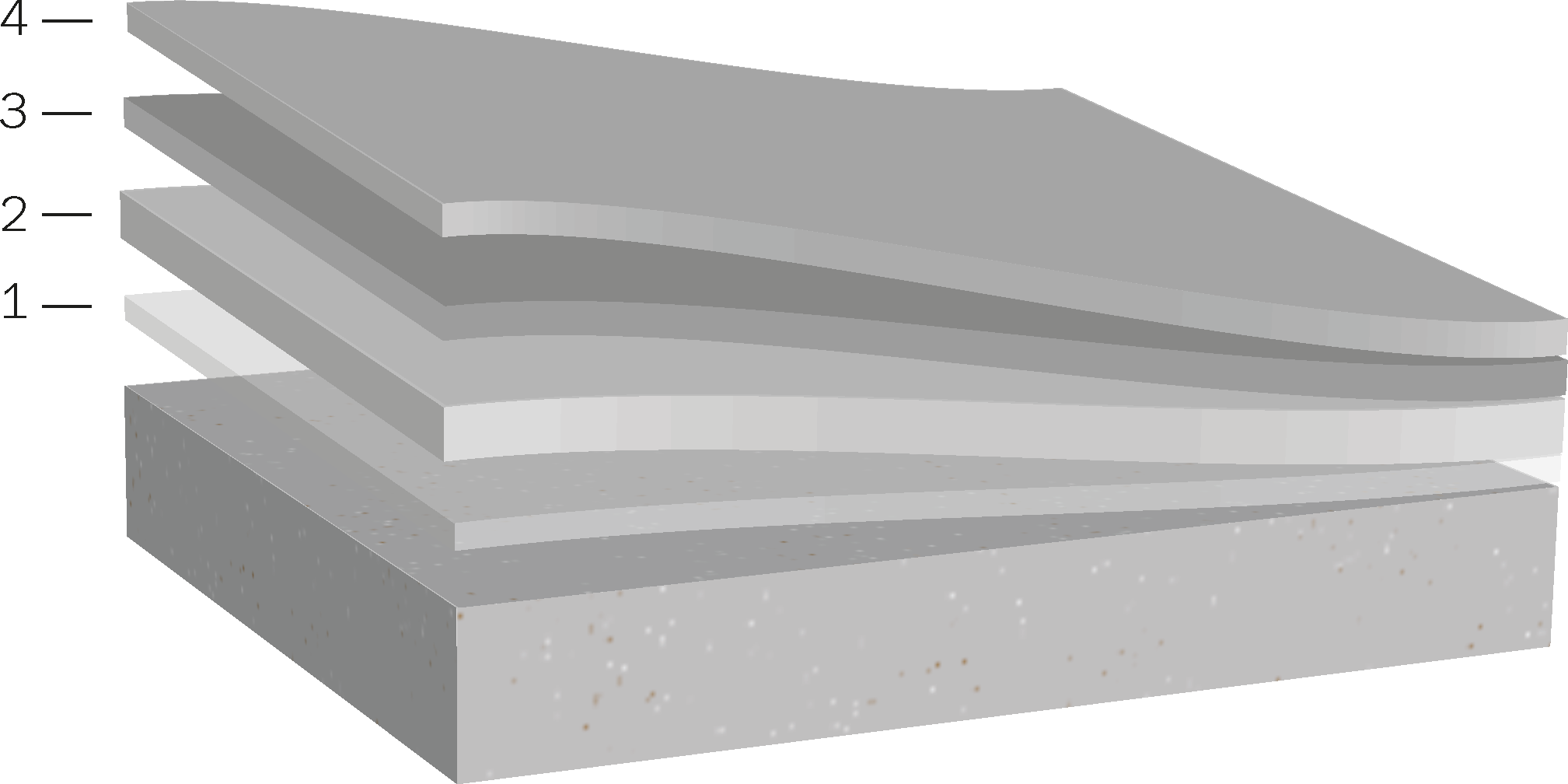

Novolac 32

Coat	Product	Coverage Rate	Mils WFT/DFT
4 - Optional Texture	70704/70705 + 86500 Neogrip Spheres*	400 sf/gal	4/4
3 - Topcoat	70704/70705	200 sf/gal	8/8
2 - Base	70704/70705	100 sf/gal	16/16
1 - Primer	70714/70715	200 sf/gal	8/8

*See Guide Specification for instructions for adding 86500 Neogrip Spheres.

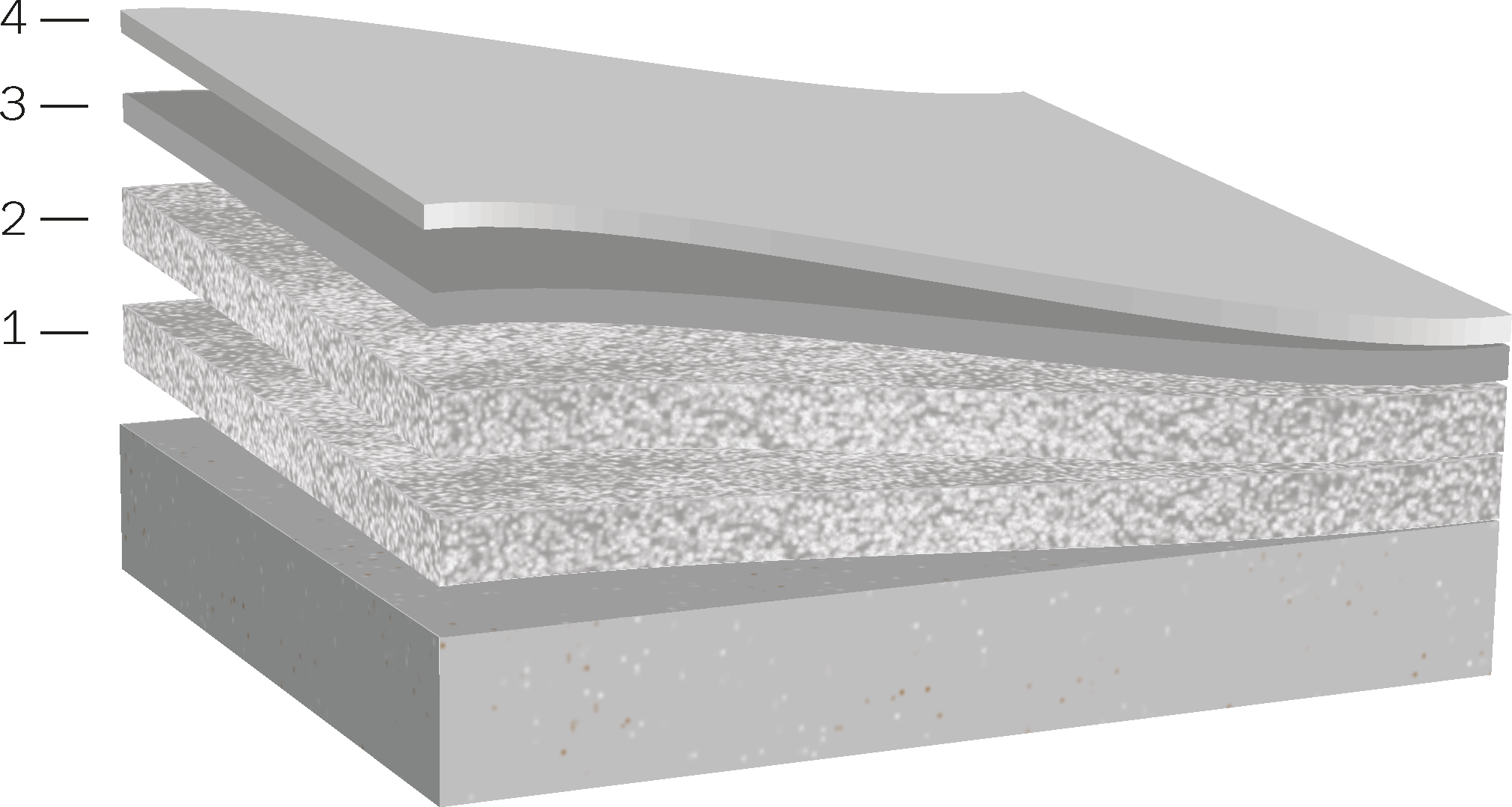

Novolac 125

Coat	Product	Coverage Rate	Mils WFT/DFT
4 - 2nd Seal	70704/70705	200 sf/gal	8/8
3 - 1st Seal	70704/70705	160 sf/gal	10/10
2 - 2nd Base	70704/70705 + 86364 Sand Aggregate	80 sf/gal 50 lbs/100 sf	20/20
1 - 1st Base	70714/70715 + 86364 Sand Aggregate	80 sf/gal 50 lbs/100 sf	20/20

*See Guide Specification for instructions for adding 86500 Neogrip Spheres.

Product Literature

Files may be downloaded individually or in a submittal package. Choose a language to select a file. Select one file and click the download button to the right, or select multiple files and click the “Download Selected” button below.

Technical Documents

selected

Safety Data Sheets (SDS)

FAQs

What areas of my facility are appropriate for this system?

Kitchens, bakeries, food processing, animal research, chemical storage rooms, and battery charging areas.

What are the limitations of the system?

Limited only by high levels of MVT (Moisture Vapor Transition). May be used with a Moisture Mitigating Primer when needed. When a great deal of Thermal Shock resistance is needed, please refer to Neocrete.

How can this system be used for recoating existing flooring systems?

May be applied over sound, high performance coating systems by sanding/abrading and patching any holes/cracks.

How long will the system last with daily use?

Three to five years, depending upon chosen system and utilizing appropriate aggregates.

What are the general recommendations for applying this system?

Surface profile of CSP3, squeegee/backroll and trowel, apply within system guidelines for each step.

You can trust Novolac in your next project

High-performance protection tested under the harshest environments. Novolac was developed to provide outstanding chemical, thermal shock, and impact resistance for industrial and institutional applications, including food processing, animal research, chemical rooms, and freezers.
