SkyGard Systems

Epoxy/polyurethane aviation hangar floor systems

Light- to heavy-duty, in thicknesses from 16-56 mils. Chemical-resistant urethane topcoat.

Product Specifications
Application Methods
Product Literature
Technical Documents
FAQs

System Overview

Neogard SkyGard systems are designed to be high-performance and hard-wearing, with excellent chemical, stain, and abrasion resistance. These seamless, non-porous systems are aesthetically pleasing with bright, light-reflective colors offering both enhanced visibility and safety. SkyGard systems are UV stable, durable and long-lasting finishes with various non-slip textures that balance safety concerns with ease of cleaning and maintenance. Line striping, special markings, and integrating colored borders can help establish maintenance, parking zones, as well as enhance the overall image of the hangar. Available systems are shown below.

Selected Physical Properties

Product	Description	Test Method	Results
70714/70715 epoxy	Compressive Strength	ASTM D695	25,300 psi
70817/70818 CRU	Shore D	ASTM D2240	70
70817/70818 CRU	Taber Abrasion	ASTM D4060	23 mg/1,000 CS-17
70817/70818 CRU	Chemical Resistance	See Chemical Resistance Chart

Consult Neogard Product Data Sheets and Guide Specifications for a complete list of physical properties.

Use Area:

Aviation, Automotive, Manufacturing

Type:

Epoxy/Polyurethane

Features:

Seamless
Light Reflective
Skydrol Resistant
UV Stable
Optional texture

Benefits:

Improves cleanability
Excellent abrasion resistance
Customizable thickness

Ask us about Neogard SkyGard

Our Neogard Experts team is glad to tell you how Neogard SkyGard is the best coating system to protect your investment.

1-833-443-6735

SkyGard System Builds

Before application, always check Neogard Product Data Sheets and Guide Specifications for mixing instructions and other important information.

SkyGard LD

SkyGard MD

SkyGard HD

SkyGard MRO

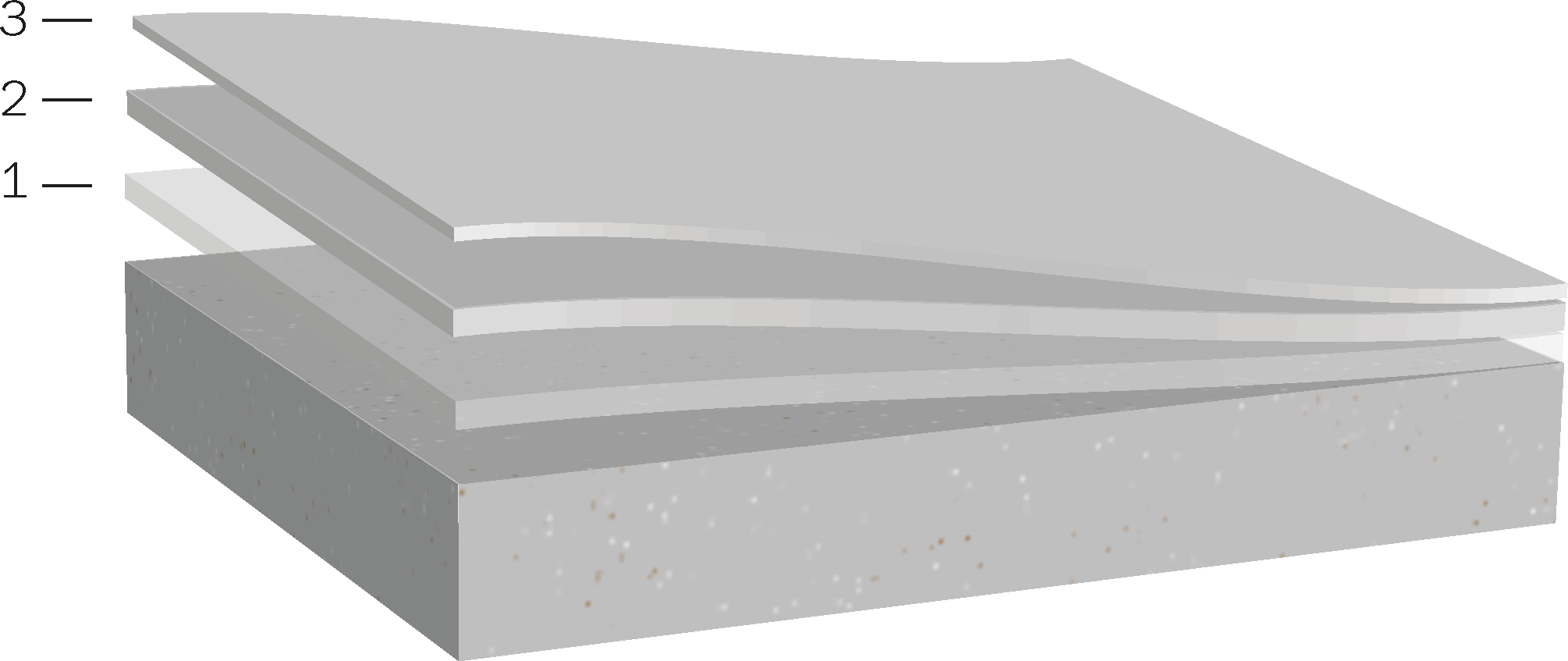

SkyGard LD

Coat	Product	Coverage Rate	Mils WFT/DFT
3 - Optional Texture	70817/70818 + 86500 Neogrip Spheres*	400 sf/gal	4/4
2 - Topcoat	70817/70818	200 sf/gal	8/8
1 - Primer	70714/70715	200 sf/gal	8/8

*See Guide Specification for instructions for adding 86500 Neogrip Spheres.

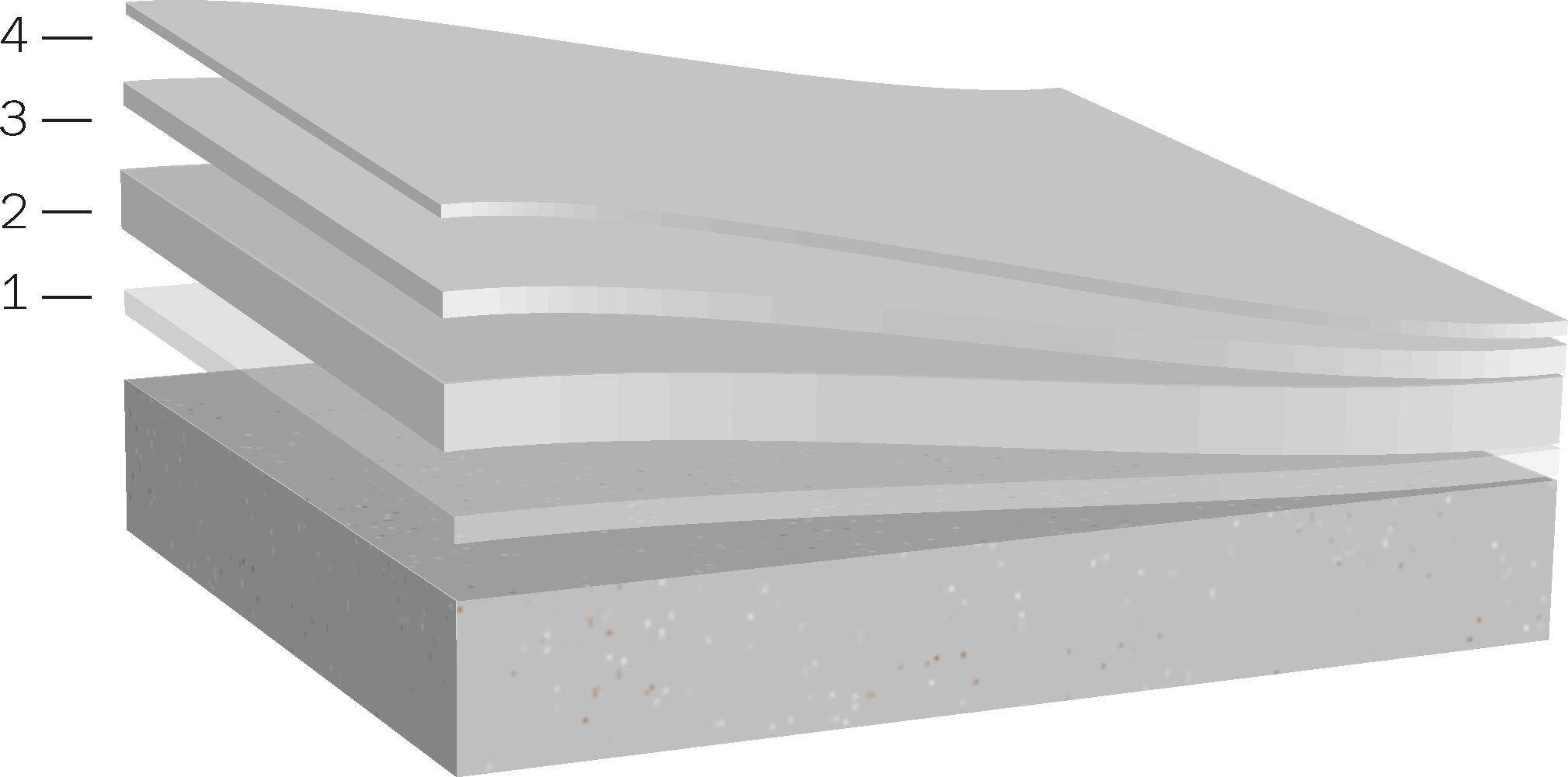

SkyGard MD

Coat	Product	Coverage Rate	Mils WFT/DFT
4 - Optional Texture	70817/70818 + 86500 Neogrip Spheres*	400 sf/gal	4/4
3 - Topcoat	70817/70818	200 sf/gal	8/8
2 - Base	70714/70715	80 sf/gal	20/20
1 - Primer	70714/70715	200 sf/gal	8/8

*See Guide Specification for instructions for adding 86500 Neogrip Spheres.

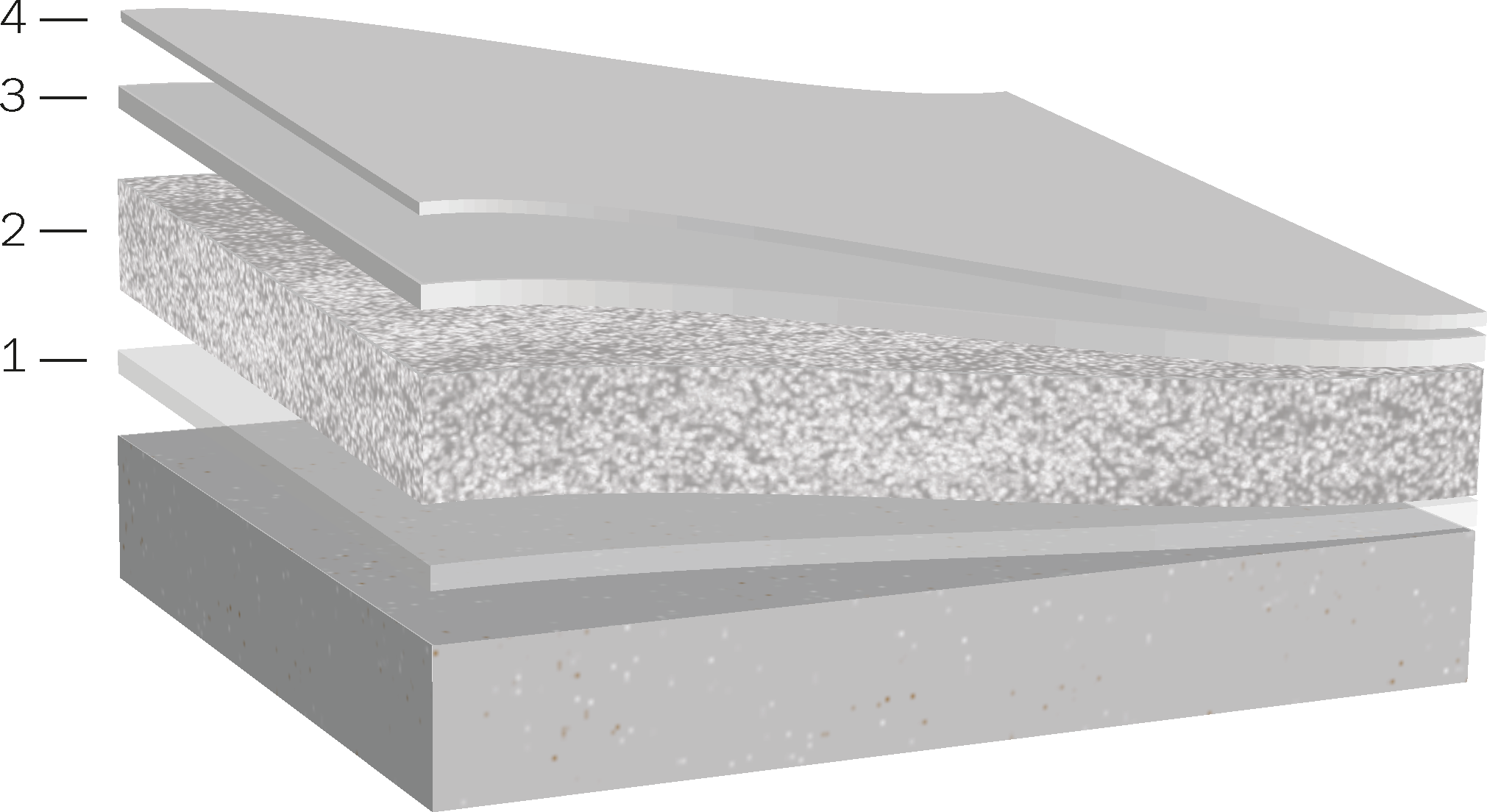

SkyGard HD

Coat	Product	Coverage Rate	Mils WFT/DFT
4 - Optional Texture	70817/70818 + 86500 Neogrip Spheres*	400 sf/gal	4/4
3 - Topcoat	70817/70818	200 sf/gal	8/8
2 - Slurry base	70714/70715 + 86468 Flour	40 sf/gal	40/40
1 - Primer	70714/70715	200 sf/gal	8/8

*See Guide Specification for instructions for adding 86500 Neogrip Spheres.

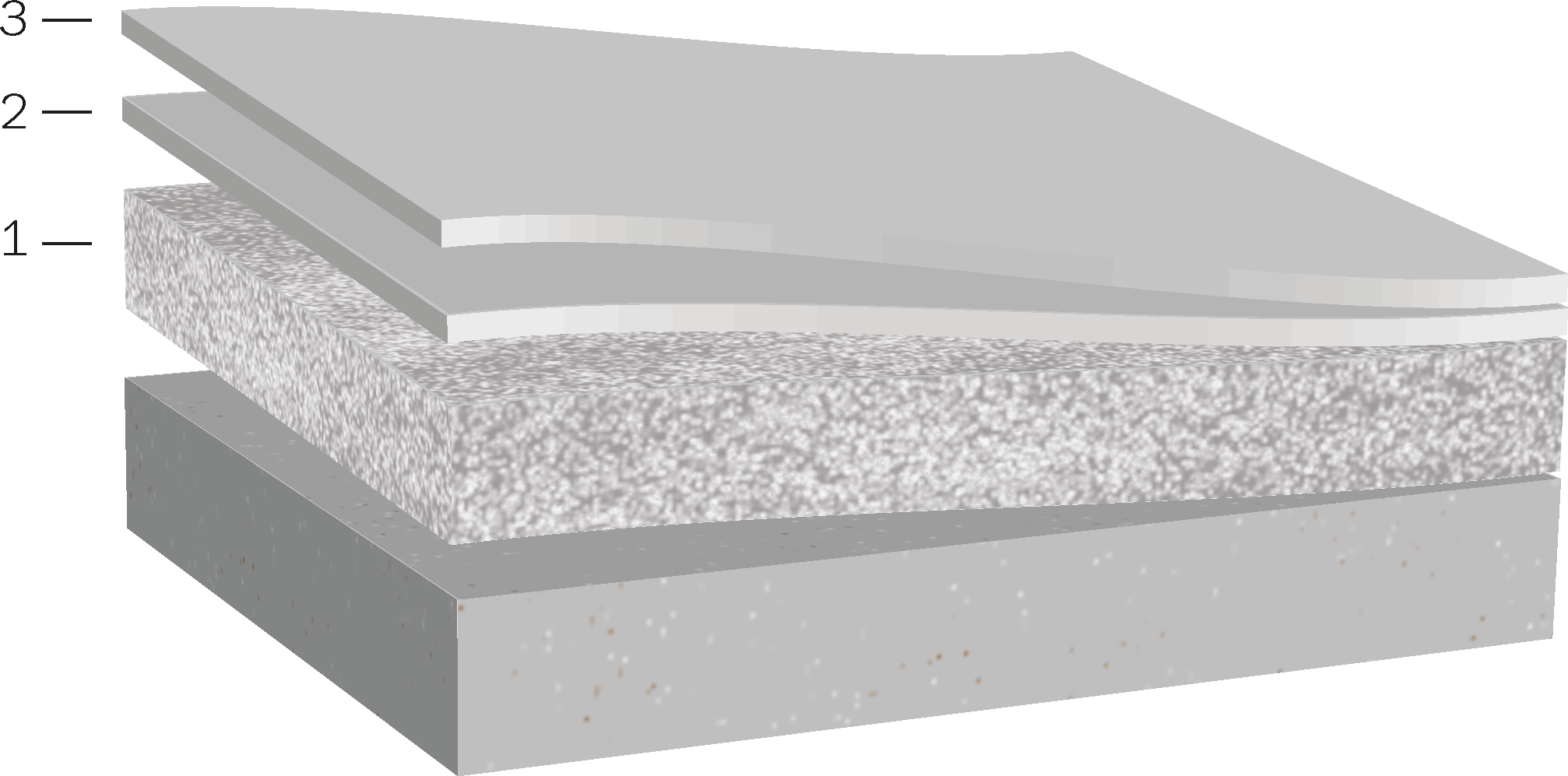

SkyGard MRO

Coat	Product	Coverage Rate	Mils WFT/DFT
4 - 2nd Seal	70817/70818	285 sf/gal	5/5
or
4 - 2nd Seal	70714/70715	200 sf/gal	8/8
3 - 1st Seal	70714/70715	200 sf/gal	8/8
2 - Aggregate	86364 Sand	100 lbs/100 sf	40/40
1 - Slurry Base	70714/70715 + 86468 flour	40 sf/gal	40/40

Product Literature

Files may be downloaded individually or in a submittal package. Choose a language to select a file. Select one file and click the download button to the right, or select multiple files and click the “Download Selected” button below.

Technical Documents

selected

Safety Data Sheets (SDS)

FAQs

What areas of my facility are appropriate for this system?

Aircraft hangars, supply areas, maintenance areas, tug areas, showroom floors, auto maintenance areas, bathrooms, etc.

What are the limitations of the system?

In case of high levels of MVT(Moisture Vapor Transmission), may be used with Moisture Mitigating Primer.

How can this system be used for recoating existing flooring systems?

May be applied over sound, high performance coating systems by sanding/abrading/patching and installation of intermediate and topcoats.

How long will the system last with daily use?

3-5 years with normal abuse and wear. System is sustainable by sand/reapplication of topcoats.

What are the general recommendations for applying this system?

Surface prep of CSP3, squeegee/backroll, apply within system guidelines for each step.

You can trust Neogard SkyGard in your next project

High-performance protection tested under the harshest environments. Neogard SkyGard was designed to be high-performance and hard-wearing, with excellent chemical, stain, and abrasion resistance.
