Elastacryl SP System

Acrylic system for use over single-ply roofing substrates

Elastacryl SP is a seamless, fully adhered, fluid-applied coating system for use over single-ply membranes such as TPO, PVC, EPDM, and others.

Product Specifications
Application Methods
Product Literature
Technical Documents
FAQs

System Overview

Elastacryl SP uses Neogard 7251 and 7261 acrylic coatings; they are single component, water based, and elastomeric. Both 7251 and 7261 meet LEED performance requirements for low-slope roofing, and are approved by the Cool Roof Ratings Council (CRRC). They also meet VOC requirements for the South Coast AQMD. Special primers for TPO and other singly-ply materials are available to maximize the system’s adhesion.

Not intended for use over ballasted single-ply roof membranes; contact Neogard for recommendations.

Selected Physical Properties

Product	Description	Test Method	Results
7251 and 7261	Tensile Strength	ASTM D2370	280 psi
7251 and 7261	Elongation	ASTM D2370	270%
7251 and 7261	Water Resistance	ASTM D471	< 20%
7251 and 7261	Solar Reflectance	ASTM C1549	0.83
7251 and 7261	Thermal Emittance	ASTM C1371	0.87

Consult Neogard Product Data Sheets and Guide Specifications for a complete list of physical properties.

Use Area:

Roofing

Type:

Acrylic

Features:

Low odor
Lightweight
Energy efficient
Elastomeric
Energy efficient

Benefits:

Environmentally friendly
Installed over existing roof with minimal tear-off
Reflects light and emits heat
Accomodates thermal expansion and contraction
Reflects light and emits heat

Ask us about Elastacryl SP

Our Neogard Experts team is glad to tell you how Elastacryl SP is the best coating system to protect your investment.

1-833-443-6735

Elastacryl SP System Build

Before application, always check Neogard Product Data Sheets and Guide Specifications for mixing instructions and other important information.

10-Year Warranty System

15-Year Warranty System

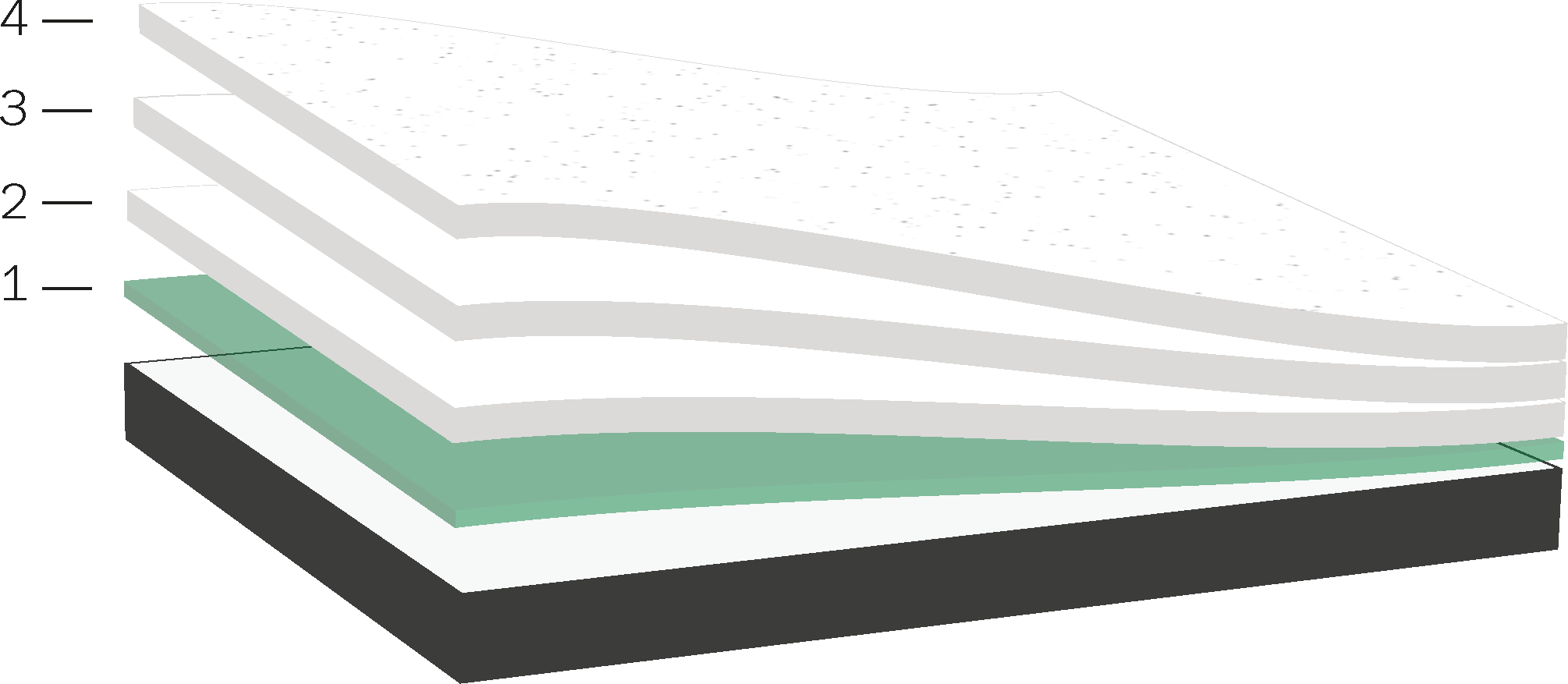

Elastacryl SP

Coat	Product	Coverage Rate	Mils WFT/DFT
4 - Optional Granule Coat	7251 or 7261 + #11 roofing granules	80 sf/gal 30 lbs/100 sf	20/10
3 - Second	7251 or 7261	66 sf/gal	24/13
2 - First	7251 or 7261	66 sf/gal	24/13
1 - Primer	TPO: 7720 Others: 7797/7798	250-300 sf/gal 400 sf/gal	NA

Consult the Elastacryl SP Guide Specification for seam detail options.

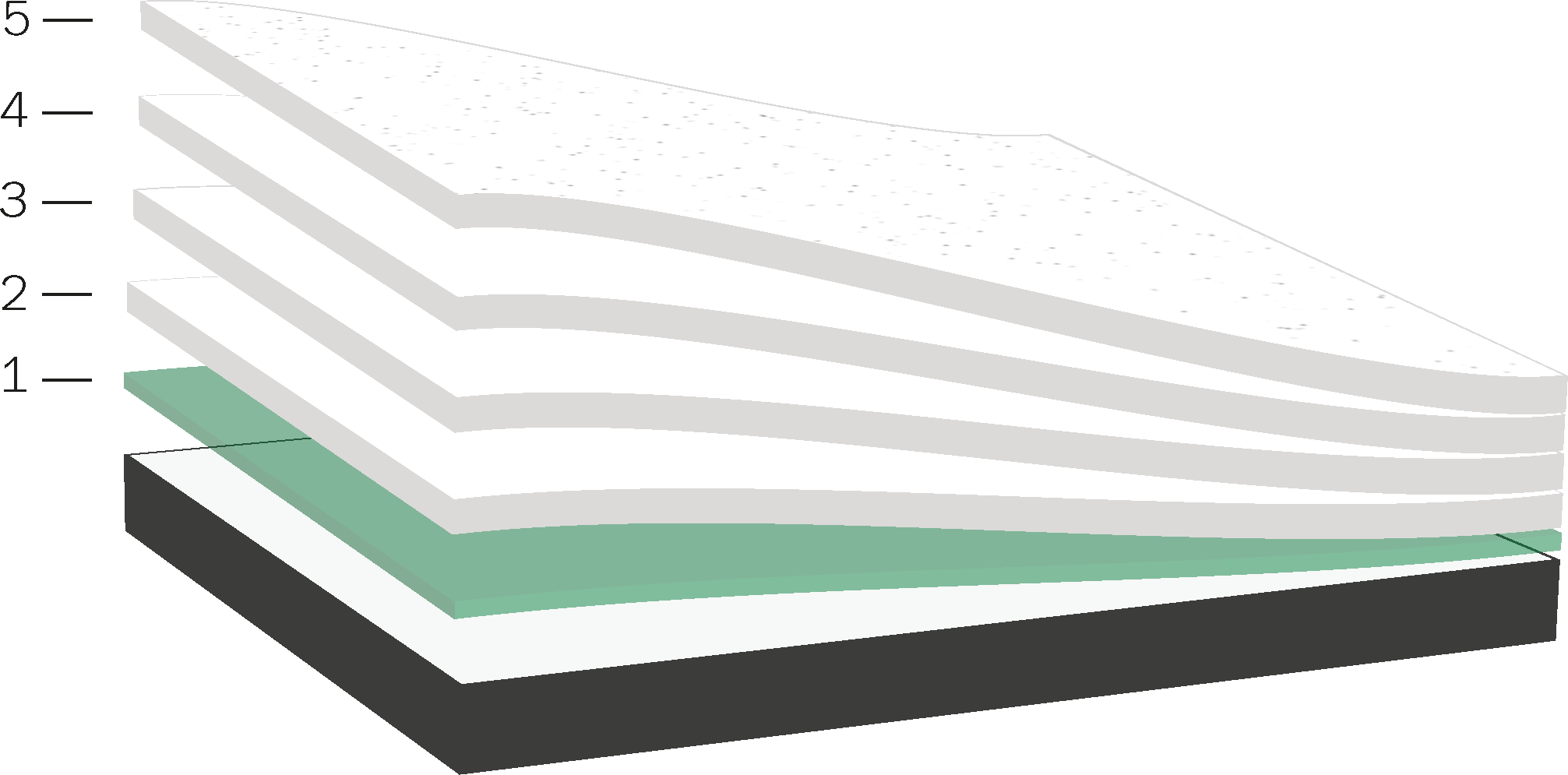

Elastacryl SP

Coat	Product	Coverage Rate	Mils WFT/DFT
5 - Optional Granule Coat	7251 or 7261 + #11 roofing granules	80 sf/gal 30 lbs/100 sf	20/10
4 - Third	7251 or 7261	66 sf/gal	24/13
3 - Second	7251 or 7261	66 sf/gal	24/13
2 - First	7251 or 7261	66 sf/gal	24/13
1 - Primer	TPO: 7720 Others: 7797/7798	250-300 sf/gal 400 sf/gal	NA

Consult the Elastacryl SP Guide Specification for seam detail options.

Product Literature

Files may be downloaded individually or in a submittal package. Choose a language to select a file. Select one file and click the download button to the right, or select multiple files and click the “Download Selected” button below.

Technical Documents

selected

Safety Data Sheets (SDS)

FAQs

Can Neogard's acrylic roof coatings withstand ponding water?

No. Neogard's roofing acrylics are water-based, so they cannot withstand ponding water.

Are seam details required for the Elastacryl SP system?

Yes. All seams should be detailed with 70690 urethane mastic prior to coating.

Is a moisture analysis required prior to the installation of Elastacryl SP?

A moisture analysis is not required, but is highly recommended prior to the start of work.

What warranties are available for Elastacryl SP?

We offer Material Only and Labor/Material Warranties for 10 and 15 year terms.

Do you have to be an approved applicator to install Neogard warranted systems?

You do not have to be an approved applicator to purchase material and receive a Material Warranty. You must be a Certified Applicator to receive a Labor/Material Warranty.

You can trust Elastacryl SP in your next project

High-performance protection tested under the harshest environments. Elastacryl SP is a seamless, fully adhered, fluid-applied coating system for use over single-ply membranes such as TPO, PVC, EPDM, and others.
