Permathane Aliphatic II System Foam Roof Coating

Aliphatic urethane topcoat roofing system

Permathane Aliphatic II is a single-component polyurethane base coat, single-component aliphatic polyurethane topcoat system for use over spray polyurethane foam roof Coating (foam provided by others).

Product Specifications
Application Methods
Product Literature
Technical Documents
FAQs

System Overview

Permathane Aliphatic II incorporates a 70620-CA aromatic urethane base coat with a 7490-CA aliphatic urethane topcoat. The 20-year warranty system carries a Class 4 Very Severe Hail rating. It is ideal for institutional, commercial, industrial, and high-rise/multi-family residential applications. Recommended SPF density is 2.7–3.2 pounds.

Neogard -CA urethane roof coatings form a seamless membrane for superior durability, flexibility, color retention and long-term protection. They comply with South Coast AQMD VOC regulations. They are typically rolled, but can also be sprayed (contact Neogard for information on spray equipment). Our 7490-CA aliphatic topcoat has high UV resistance, and is less likely to chalk than an aromatic coating. It and our 70620-CA base coat also have high tensile strength and chemical resistance, which prevents failure due to expansion and contraction of the system, and failures around critical areas like penetrations and flashing.

Selected Physical Properties

Product	Description	Test Method	Results
70620-CA	Tensile Strength	ASTM D412	1,000 psi
70620-CA	Elongation	ASTM D412	375%
70620-CA	Water Resistance	ASTM D471	< 2%, 7 days
7490-CA	Tensile Strength	ASTM D412	2,300 psi
7490-CA	Elongation	ASTM D412	230%
7490-CA	Water Resistance	ASTM D471	< 2%, 7 days
Permathane Aliphatic II	Hail Impact Resistance	FM4473	Class 4, Very Severe

Consult Neogard Product Data Sheets and Guide Specifications for a complete list of physical properties.
This product is FM Approved only as maintenance coating per FM Standard 4470. It is not Approved as a liquid applied roof cover.

Use Area:

Roofing

Type:

Aliphatic Urethane

Features:

Seamless and fully adhered
Aliphatic Urethane Top Coat
Hail and wind resistant
Energy efficient
Sustainable

Benefits:

One-piece “customized” finished roof
Great UV Stability
Performs in adverse weather conditions
Lower energy expenses
Systems can be renewed, rather than replaced

Ask us about Permathane Aliphatic II

Our Neogard Experts team is glad to tell you how Permathane Aliphatic II is the best coating system to protect your investment.

1-833-443-6735

Permathane Aliphatic II System Build

Before application, always check Neogard Product Data Sheets and Guide Specifications for mixing instructions and other important information.

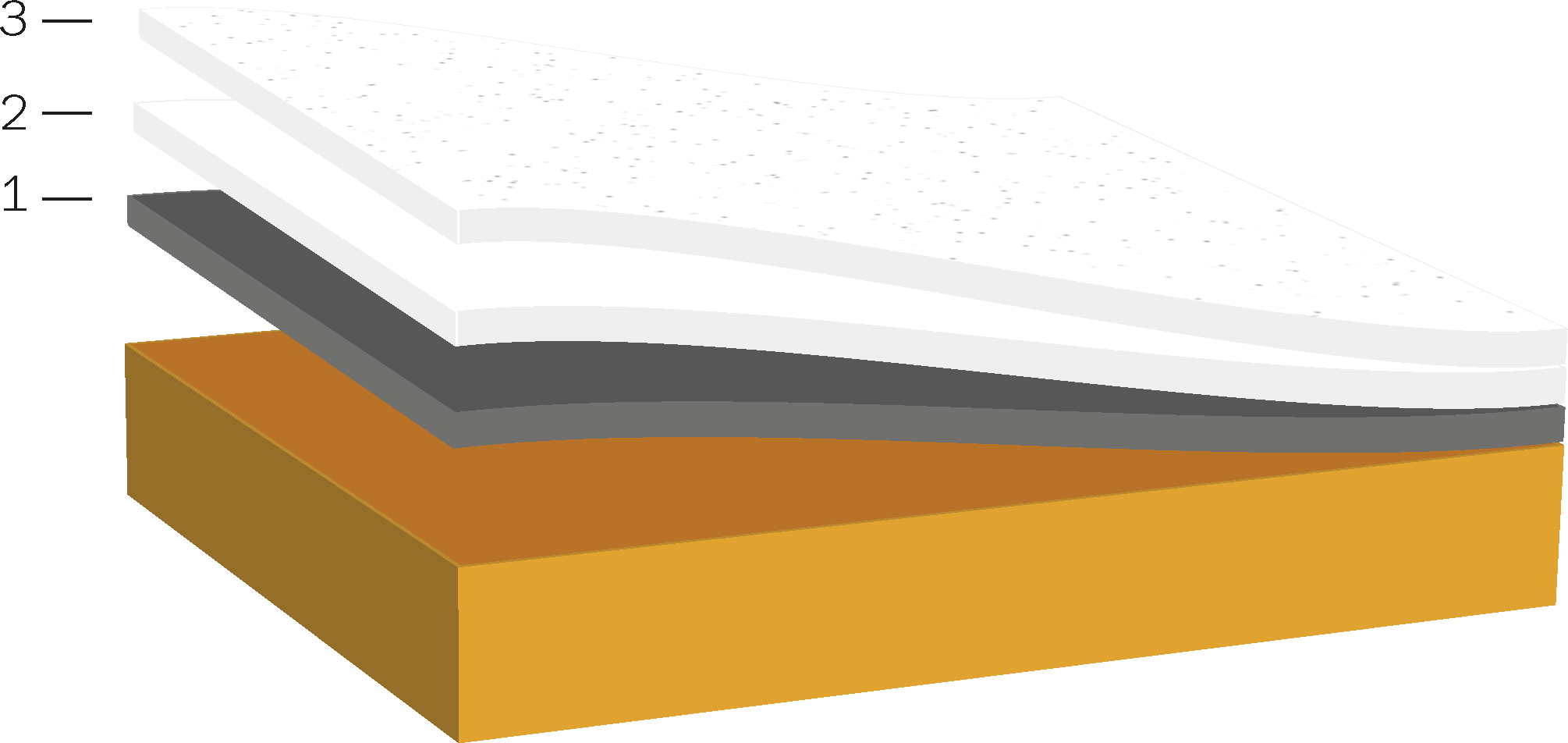

10-Year Warranty System

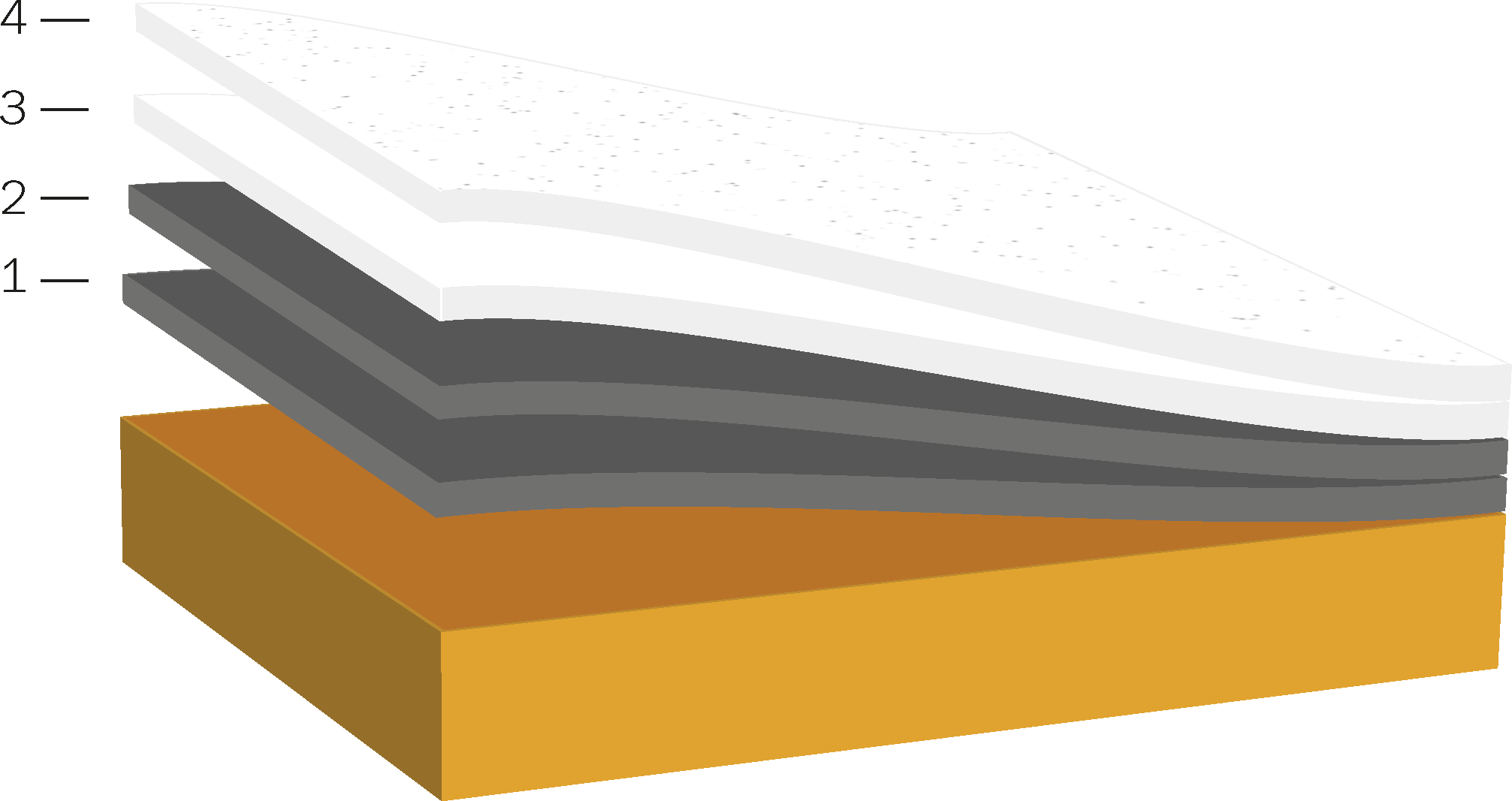

15-Year Warranty System

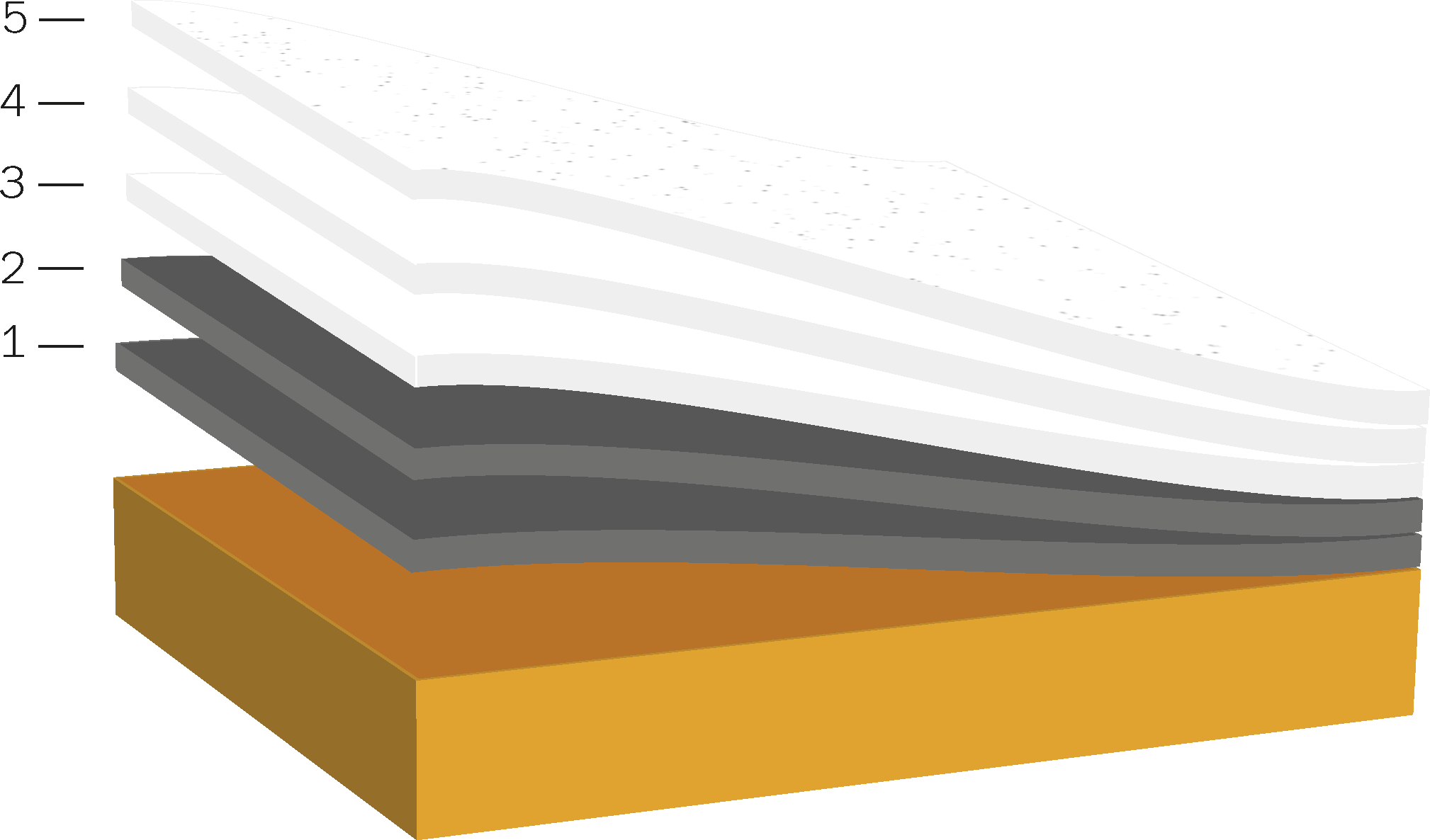

20-Year Warranty, VSH System

Permathane Aliphatic II

Coat	Product	Coverage Rate	Mils WFT/DFT
3 - Optional Granule Coat	7490-CA + #11 roofing granules	100 sf/gal 30 lbs/100 sf	16/12
2 - Topcoat	7490-CA	66 sf/gal	24/18
1 - Base	70620-CA	66 sf/gal	24/18

Permathane Aliphatic II

Coat	Product	Coverage Rate	Mils WFT/DFT
4 - Optional Granule Coat	7490-CA + #11 roofing granules	100 sf/gal 30 lbs/100 sf	16/12
3 - Topcoat	7490-CA	66 sf/gal	24/18
2 - 2nd Base	70620-CA	80 sf/gal	20/15
1 - 1st Base	70620-CA	80 sf/gal	20/15

Permathane Aliphatic II

Coat	Product	Coverage Rate	Mils WFT/DFT
5 - Optional Granule Coat	7490-CA + #11 roofing granules	100 sf/gal 30 lbs/100 sf	16/12
4 - 2nd Topcoat	7490-CA	80 sf/gal	20/15
3 - 1st Topcoat	7490-CA	80 sf/gal	20/15
2 - 2nd Base	70620-CA	80 sf/gal	20/15
1 - 1st Base	70620-CA	80 sf/gal	20/15

Product Literature

Files may be downloaded individually or in a submittal package. Choose a language to select a file. Select one file and click the download button to the right, or select multiple files and click the “Download Selected” button below.

Technical Documents

selected

Safety Data Sheets (SDS)

FAQs

Can your urethane coatings withstand ponding water?

Yes the urethane products can perform under ponding water when the required dry film thickness is achieved

What are the length of warranties for your Permathane Aliphatic II system?

The Permathane Aliphatic II system offers 10, 15 and 20 year warranties.

Is a moisture analysis required prior to the installation of this system?

It is not a requirement but it is highly recommended.

Does the Permathane Aliphatic II system have a hail rating?

Yes the Permathane Aliphatic II has passed the SHR and VSR tests

Do you have to a be an approved applicator to install your coatings?

You do not have to be an approved applicator to buy or install NEOGARD products but you must be a Certified Applicator to install and receive the roofing Labor and Material Warranty.

You can trust Permathane Aliphatic II in your next project

High-performance protection tested under the harshest environments. Permathane Aliphatic II was developed to provide high-performance roof coating systems and form a seamless membrane for superior durability, flexibility, color retention and long-term protection.
