Auto-Gard System

Single-component, solvent-based urethane system that protects concrete from moisture intrusion

Auto-Gard offers excellent performance properties to provide outstanding adhesion, crack bridging, and abrasion resistance. On the market for over 40 years, it has a solid track record of protecting concrete structures.

Product Specifications
Application Methods
Technical Documents
FAQs

System Overview

Auto-Gard is a proven waterproofing system for concrete parking decks and pedestrian high-traffic applications, especially stadiums. Auto-Gard provides a seamless, durable, skid-resistant membrane, preventing ingress of moisture and chloride intrusion that lead to premature deterioration.

Maintain the structural integrity and appearance of your investments with Auto-Gard, and prolong the lifecycle of your structure while reducing cost over time with proper maintenance.

Selected Physical Properties

Product	Description	Test Method	Results
Auto-Gard system	Dynamic Coefficient of Friction	ANSI A137.1	0.78, dry surface
Auto-Gard system	Dynamic Coefficient of Friction	ANSI A137.1	0.54, wet surface
Auto-Gard system	Fire Resistance	ASTM E108	Pass
Auto-Gard system	Standard Specifications	ASTM C957	Exceeds requirements
7430 topcoat	Taber Abrasion	ASTM D4060	25 mg/1,000 CS-17

Consult Neogard Product Data Sheets and Guide Specifications for a complete list of physical properties.

Use Area:

Vehicular Traffic

Type:

Urethane

Features:

Single component
Elastomeric properties throughout system
Reduced application steps

Benefits:

Reduced mixing time
Aids in crack bridging
Allows for increased production

Ask us about Auto-Gard

Our Neogard Experts team is glad to tell you how Auto-Gard is the best coating system to protect your investment.

1-833-443-6735

Auto-Gard System Build

Before application, always check Neogard Product Data Sheets and Guide Specifications for mixing instructions and other important information.

Seed and Lock

Seed and Backroll

Auto-Gard Seed and Lock

Coat	Product	Coverage Rate	Mils WFT/DFT
5 - Topcoat	7430 series	100 sf/gal	16/12
4 - HD Wear	7430 series + 7992 aggregate	100 sf/gal 10 lb/100 sf	16/12
3 - Wear	7430 series + 7992 aggregate	150 sf/gal 15 lb/100 sf	10/8
2 - Base	70410	60 sf/gal	26/20
1 - Primer	7760/7761 7780/7781 7797/7798	300 sf/gal 300 sf/gal 300-500 sf/gal	NA

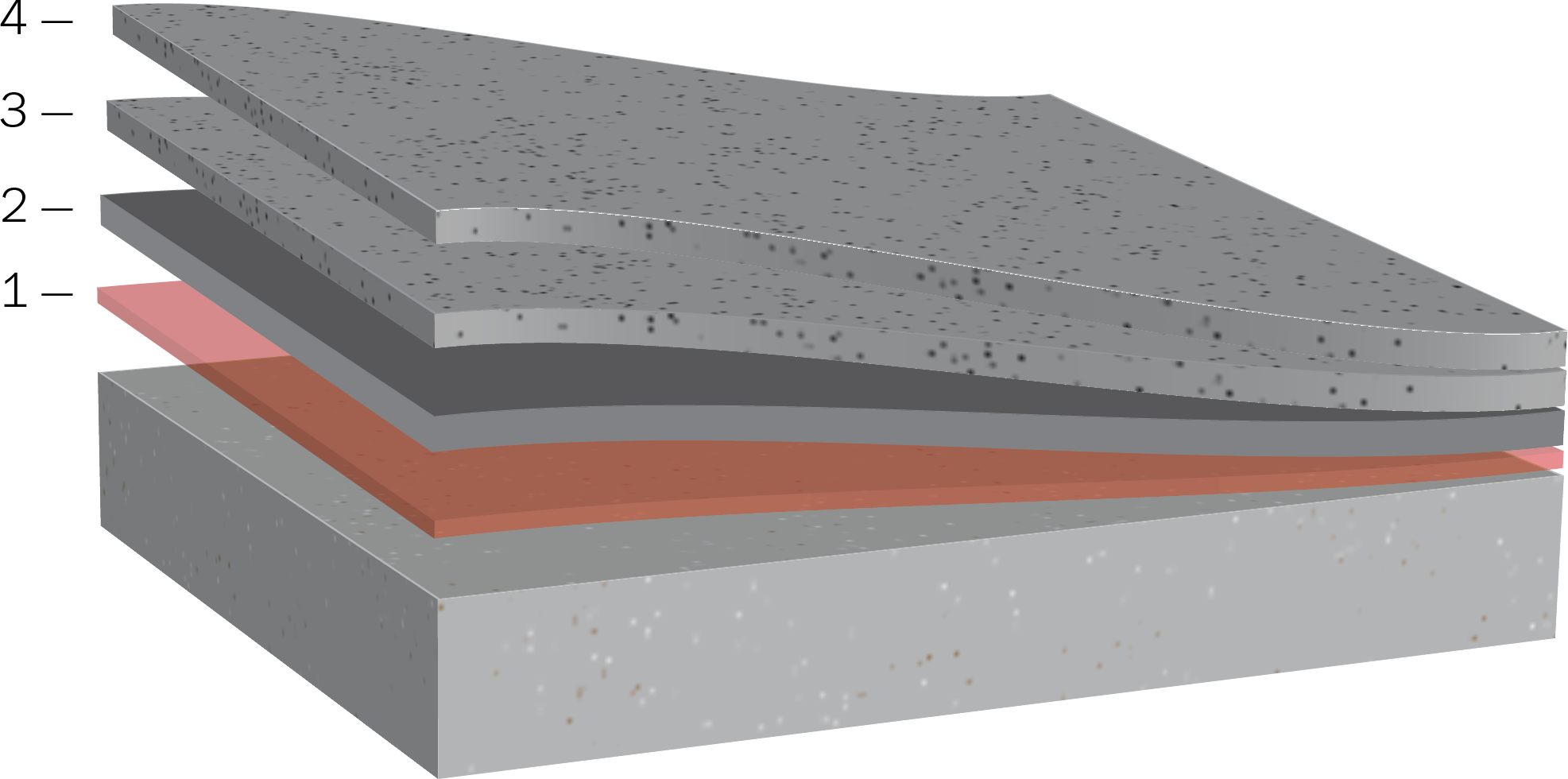

Auto-Gard Seed and Backroll

Coat	Product	Coverage Rate	Mils WFT/DFT
4 - Topcoat	7430 series + 7992 aggregate	60 sf/gal 15 lb/100 sf	26/20
3 - HD Wear	7430 series + 7992 aggregate	100 sf/gal 10 lb/100 sf	16/12
2 - Base	70410	60 sf/gal	26/20
1 - Primer	7760/7761 7780/7781 7797/7798	300 sf/gal 300 sf/gal 300-500 sf/gal	NA

Product Literature

Files may be downloaded individually or in a submittal package. Choose a language to select a file. Select one file and click the download button to the right, or select multiple files and click the “Download Selected” button below.

Technical Documents

selected

Safety Data Sheets (SDS)

FAQs

How often do I need to maintain epoxy floors?

Neogard recommends washing all floors at least once a week, and high-traffic areas daily, using the proper brush and detergent. Areas in which oil and grease are prevalent will also require daily attention.

Do epoxy floors scratch easily?

Epoxy flooring doesn't scratch easily due to it being a hard resin coating, however like any surface if something sharp enough scratches the surface, scratches may appear.

How long until you can walk on an epoxy floor?

Once the epoxy has completely cured, it is safe to step on. If using 100% solids epoxy, your floor will be cured and walkable in about 12 - 18 hours. You can return to full heavy traffic after about 36 - 72 hours. Most epoxies reach full chemical cure within 7 days of application.

You can trust Auto-Gard in your next project

High-performance protection tested under the harshest environments. Auto-Gard was developed to endure intense vehicular traffic while providing a seamless, durable, skid-resistance membrane to prevent the ingress of moisture and chloride intrusion.
