Auto-Gard FC System

Two component, fast cure, low odor urethane system with an aliphatic topcoat, for fast turnaround and/or odor sensitive applications

Auto-Gard FC provides outstanding adhesion, crack bridging, and abrasion resistance. It is ideal for interiors and other odor-sensitive applications where fast turnaround is required.

Product Specifications
Application Methods
Product Literature
Technical Documents
FAQs

System Overview

Auto-Gard FC’s low odor and fast curing allows for vehicular traffic 24-36 hours after installation. Allows quick installation of full coating system, and is compatible with the most stringent VOC regulations. This system is ideal for work in or near occupied buildings where odor may be an issue.

Auto-Gard FC provides a seamless, durable, skid-resistant membrane, preventing ingress of moisture and chloride intrusion that lead to premature deterioration.

Maintain the structural integrity and appearance of your investments with Auto-Gard FC, and prolong the lifecycle of your structure while reducing cost over time with proper maintenance.

Selected Physical Properties

Product	Description	Test Method	Results
FC7510/FC7961 topcoat	Dynamic Coefficient of Friction	ANSI A137.1	0.71, dry surface
FC7510/FC7961 topcoat	Dynamic Coefficient of Friction	ANSI A137.1	0.50, wet surface
FC7540/FC7964 topcoat	Dynamic Coefficient of Friction	ANSI A137.1	0.73, dry surface
FC7540/FC7964 topcoat	Dynamic Coefficient of Friction	ANSI A137.1	0.63, wet surface
FC7510/FC7561 topcoat	Taber Abrasion	ASTM D4060	55 mg/1,000 CS-17
FC7540/FC7964 topcoat	Taber Abrasion	ASTM D4060	95 mg/1,000 CS-17
Auto-Gard FC system	Standard Specifications	ASTM C957	Exceeds Requirements

Consult Neogard Product Data Sheets and Guide Specifications for a complete list of physical properties.

Use Area:

Vehicular Traffic

Type:

Urethane

Features:

High elongation base coat
Tough, durable top coat
Wear course with lock coat

Benefits:

Provides excellent crack bridging properties
Provides excellent abrasion resistance and durability
Industry recognized to provide the best in performance and durability

Ask us about Auto-Gard FC

Our Neogard Experts team is glad to tell you how Auto-Gard FC is the best coating system to protect your investment.

1-833-443-6735

Auto-Gard FC System Build

Before application, always check Neogard Product Data Sheets and Guide Specifications for mixing instructions and other important information.

Seed and Lock

Seed and Backroll

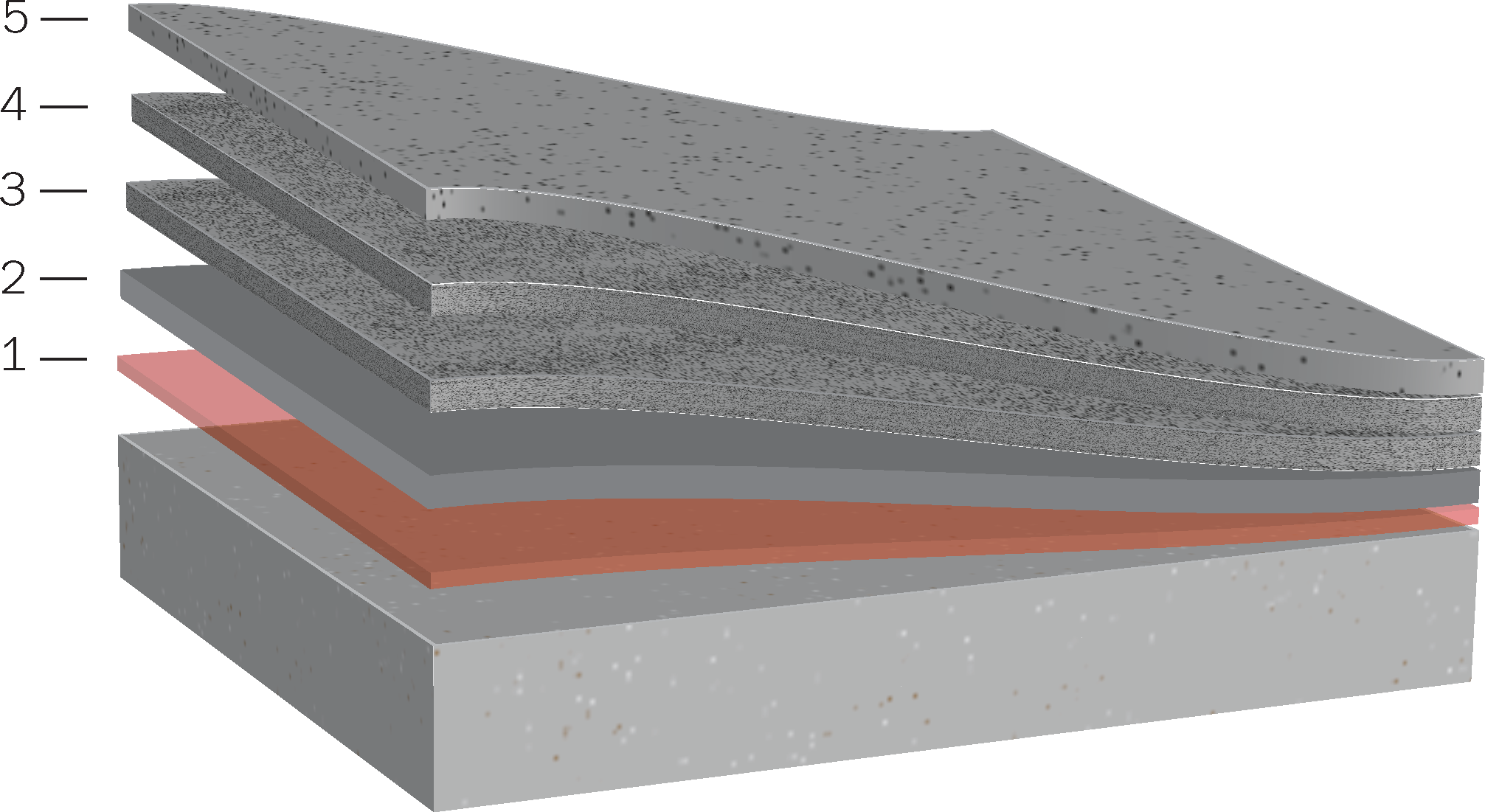

Auto-Gard FC Seed and Lock

Coat	Product	Coverage Rate	Mils WFT/DFT
5 - Topcoat	FC7510/FC7961 FC7540/FC7964 (UV)	133 sf/gal 120 sf/gal	12/12 13/12
4 - HD Wear	FC7510/FC7961 + 7992-U aggregate	133 sf/gal 10 lbs/100 sf	12/12
3 - Wear	FC7510/FC7961 + 7992-U aggregate	200 sf/gal 15 lbs/100 sf	8/8
2 - Base	FC7500/FC7960	80 sf/gal	20/20
1 - Primer	7780/7781 7797/7798	300 sf/gal 300-500 sf/gal	NA

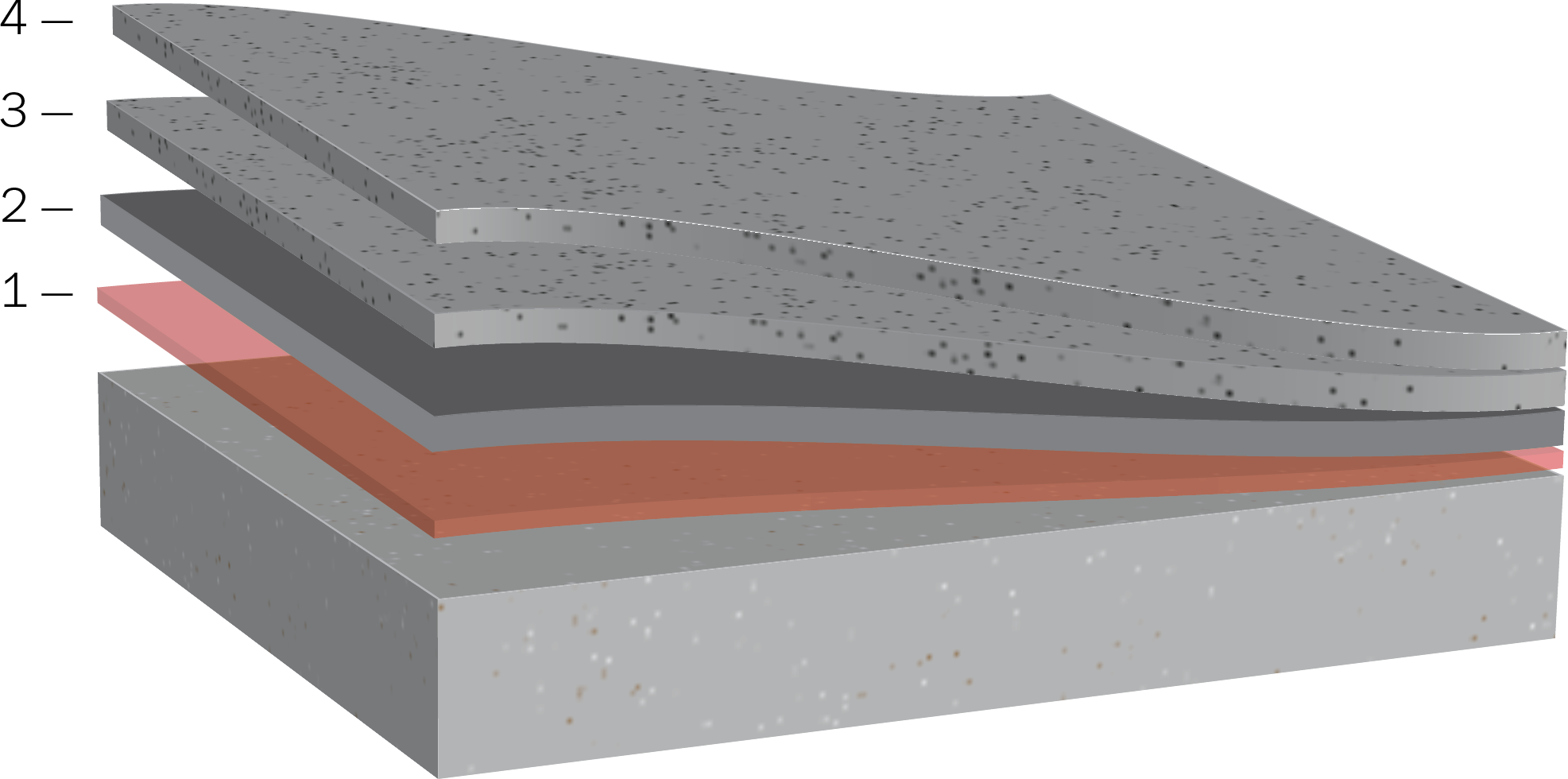

Auto-Gard FC Seed and Backroll

Coat	Product	Coverage Rate	Mils WFT/DFT
4 - Topcoat	FC7510/FC7961 FC7540/FC7964 (UV) 7992-U aggregate	80 sf/gal 70 sf/gal 15 lbs/100 sf	20/20 22/20
3 - HD Wear	FC7510/FC7961 + 7992-U aggregate	133 sf/gal 10 lbs/100 sf	12/12
2 - Base	FC7500/FC7960	80 sf/gal	20/20
1 - Primer	7780/7781 7797/7798	300 sf/gal 300-500 sf/gal	NA

Product Literature

Files may be downloaded individually or in a submittal package. Choose a language to select a file. Select one file and click the download button to the right, or select multiple files and click the “Download Selected” button below.

Technical Documents

selected

Safety Data Sheets (SDS)

FAQs

How long does Auto-Gard FC need to cure before opening to vehicular traffic?

Typically the coating needs to cure 24 hours before opening to vehicular traffic. In cooler temperatures this time may be 24-36 hours.

What type concrete curing compounds can be used with Auto-Gard FC?

It is best to water cure concrete or use a sodium silicate curing compound. The use of acrylic or other “film forming” compounds will create bond issues and must be removed.

What is the minimum temperature at which Auto-Gard FC can be applied?

The coating should be applied at temperatures that are 40°F/4°C and rising during application.

What is the maximum concrete temperature that Auto-Gard FC can be applied?

The coating should not be applied to deck surfaces that are =/> 100°F/37°C.

You can trust Auto-Gard FC in your next project

High-performance protection tested under the harshest environments. Auto-Gard FC was developed to endure intense vehicular traffic while providing a seamless, durable, skid-resistance membrane to prevent the ingress of moisture and chloride intrusion.
