Peda-Gard Aliphatic System

Single-component, solvent-based urethane system with an aliphatic topcoat

Peda-Gard Aliphatic utilizes an aliphatic topcoat for excellent UV resistance. It also provides outstanding adhesion, crack bridging, and abrasion resistance.

Product Specifications
Application Methods
Product Literature
Technical Documents
FAQs

System Overview

Peda-Gard adds an aliphatic topcoat to our proven Peda-Gard pedestrian traffic coating system for excellent UV resistance. It is ideal for application over concrete or plywood decks. Peda-Gard Aliphatic provides a seamless, durable, skid-resistant membrane, preventing ingress of moisture and chloride intrusion that lead to premature deterioration.

Maintain the structural integrity and appearance of your investments with Peda-Gard Aliphatic, and prolong the lifecycle of your structure while reducing cost over time with proper maintenance.

Selected Physical Properties

Product	Description	Test Method	Results
Peda-Gard Aliphatic system	Dynamic Coefficient of Friction	ANSI A137.1	0.76, dry surface
Peda-Gard Aliphatic system	Dynamic Coefficient of Friction	ANSI A137.1	0.63, wet surface
Peda-Gard Aliphatic system	Fire Resistance	ASTM E108	Pass
7470 topcoat	Taber Abrasion	ASTM D4060	10 mg/1,000 CS-17

Consult Neogard Product Data Sheets and Guide Specifications for a complete list of physical properties.

Use Area:

Pedestrian

Type:

Urethane

Features:

Base coat with high elongation properties
Aliphatic top coat
Wear course with lock coat

Benefits:

Excellent crack bridging
Provides the ultimate in UV resistance
Industry recognized to provide the best in performance and durability

Ask us about Peda-Gard Aliphatic

Our Neogard Experts team is glad to tell you how Peda-Gard Aliphatic is the best coating system to protect your investment.

1-833-443-6735

Peda-Gard Aliphatic System Build

Before application, always check Neogard Product Data Sheets and Guide Specifications for mixing instructions and other important information.

Seed and Lock

Seed and Backroll

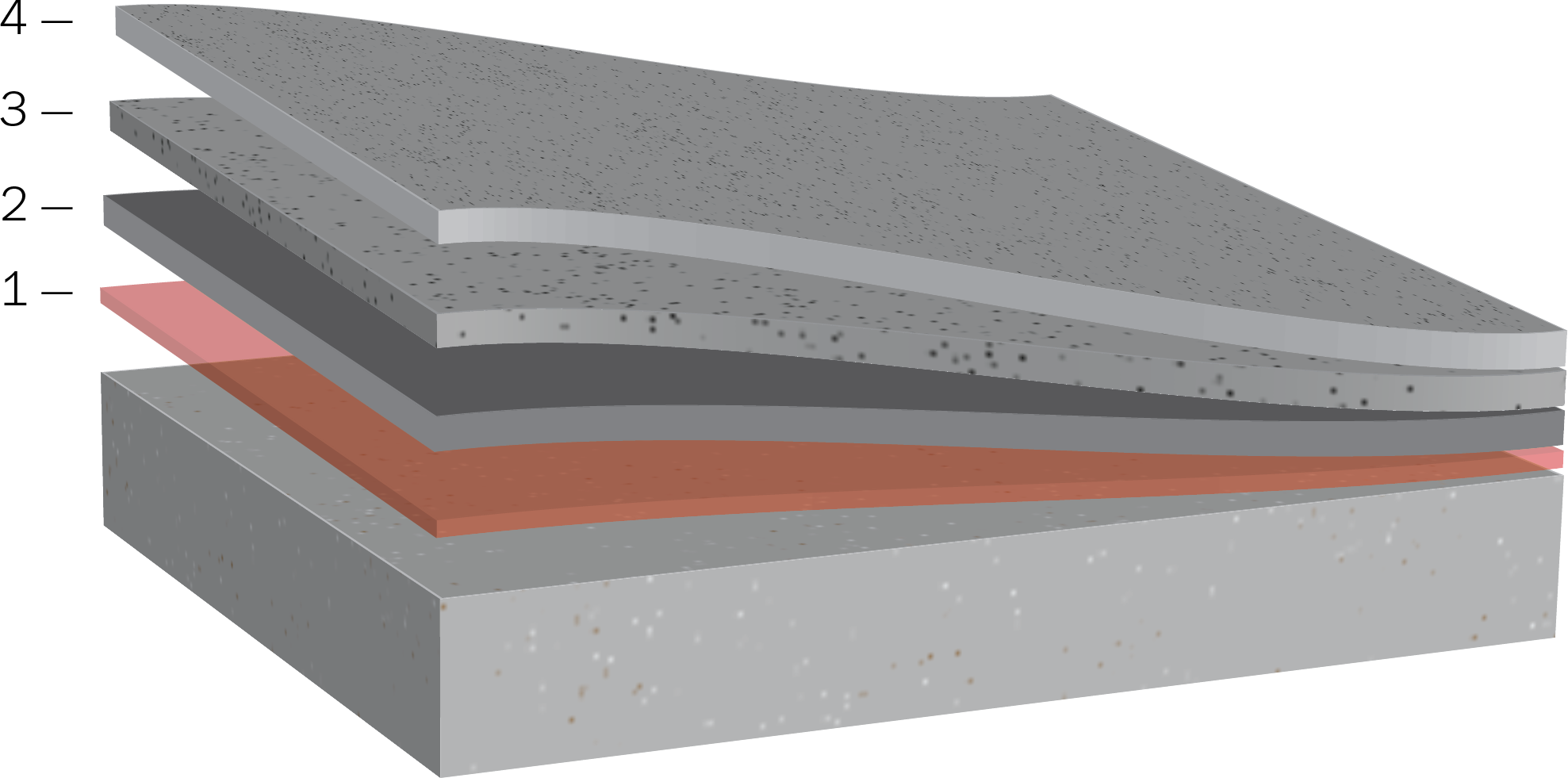

Peda-Gard Aliphatic Seed and Lock

Coat	Product	Coverage Rate	Mils WFT/DFT
4 - Topcoat	7470 series	150 sf/gal	10/8
3 - Wear	7430 series + 7992 aggregate	200 sf/gal 10 lb/100 sf	8/6
2 - Base	70410	66 sf/gal	24/18
1 - Primer	7760/7761 7780/7781 7797/7798	300 sf/gal 300 sf/gal 300-500 sf/gal	NA

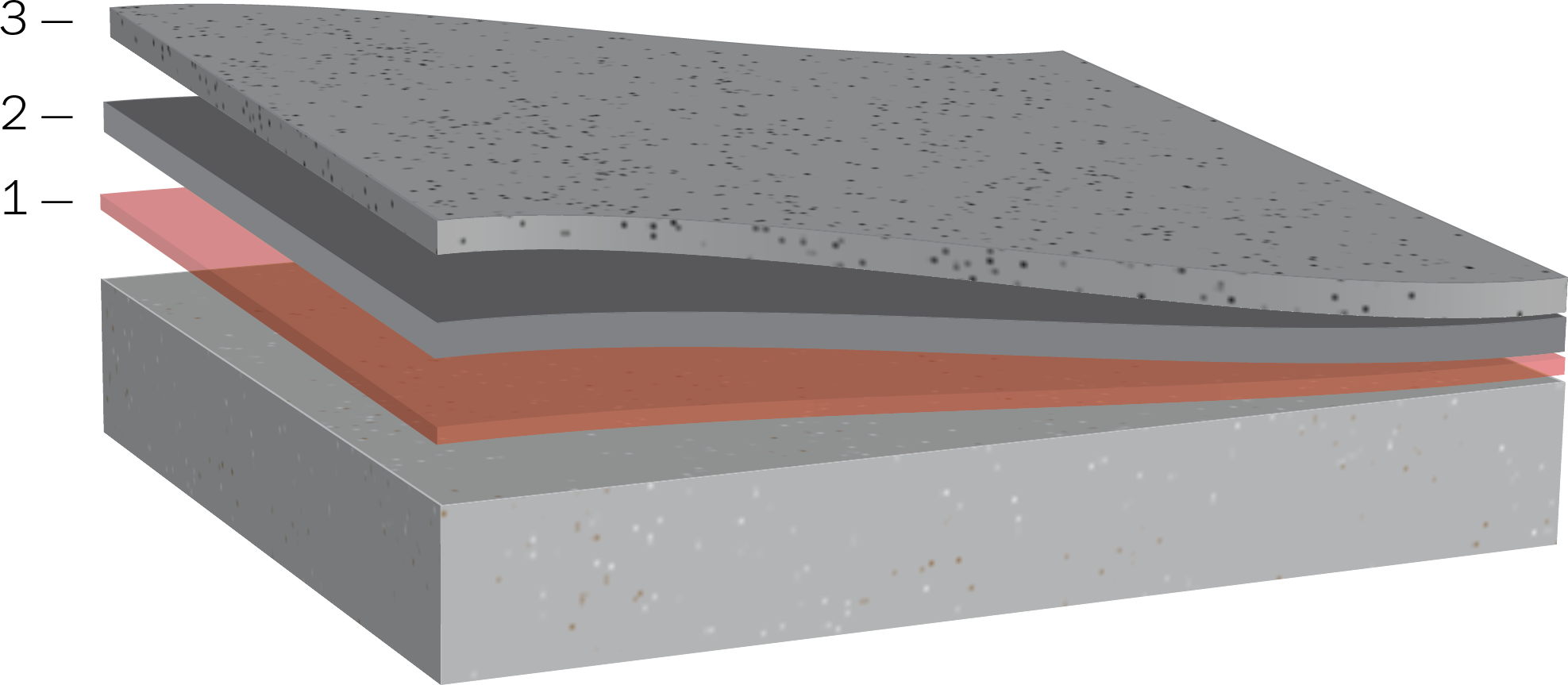

Peda-Gard Aliphatic Seed and Backroll

Coat	Product	Coverage Rate	Mils WFT/DFT
3 - Topcoat	7470 series + 7992 aggregate	60 sf/gal 10 lb/100 sf	16/12
2 - Base	70410	60 sf/gal	26/20
1 - Primer	7760/7761 7780/7781 7797/7798	300 sf/gal 300 sf/gal 300-500 sf/gal	NA

Product Literature

Files may be downloaded individually or in a submittal package. Choose a language to select a file. Select one file and click the download button to the right, or select multiple files and click the “Download Selected” button below.

Technical Documents

selected

Safety Data Sheets (SDS)

FAQs

How long does Peda-Gard Aliphatic need to cure before opening to pedestrian traffic?

Typically the coating needs to cure 48 hours before opening to pedestrian traffic. In cooler temperatures this time may be 72 hours.

What type concrete curing compounds can be used with Peda-Gard Aliphatic?

It is best to water cure concrete or use a sodium silicate curing compound. The use of acrylic or other “film forming” compounds will create bond issues and must be removed.

What is the minimum temperature at which Peda-Gard Aliphatic can be applied?

The coating should be applied at temperatures that are 40°F/4°C and rising during application.

What is the maximum concrete temperature that Peda-Gard Aliphatic can be applied?

The coating should not be applied to deck surfaces that are =/> 100°F/38°C.

You can trust Peda-Gard Aliphatic in your next project

High-performance protection tested under the harshest environments. Peda-Gard Aliphatic was developed to endure intense pedestrian traffic while providing a seamless, durable protection against cracks and abrasion.
