Peda-Gard FC Aliphatic System

Two-component, fast-cure, low-odor urethane system with an aliphatic topcoat

Peda-Gard FC Aliphatic provides outstanding adhesion, crack bridging, and abrasion resistance. It is ideal for interiors and other odor-sensitive applications where fast turnaround is required. Its aliphatic topcoat provides excellent UV resistance, and is tintable.

Product Specifications
Application Methods
Product Literature
Technical Documents
FAQs

System Overview

Peda-Gard FC Aliphatic’s low odor and fast curing allows for pedestrian traffic 24-36 hours after installation. It is also compatible with the most stringent VOC regulations. This system is ideal for work in or near occupied buildings where odor may be an issue. The aliphatic topcoat provides UV resistance for durability, and it is tintable for maximum customization.

Peda-Gard FC Aliphatic provides a seamless, durable, skid-resistant membrane, preventing ingress of moisture and chloride intrusion that lead to premature deterioration.

Maintain the structural integrity and appearance of your investments with Peda-Gard FC Aliphatic, and prolong the lifecycle of your structure while reducing cost over time with proper maintenance.

Selected Physical Properties

Product	Description	Test Method	Results
FC7530/FC7963 topcoat	Taber Abrasion	ASTM 4060	10 mg/1,000 CS-17
FC7530/FC7963 topcoat	SRI, aged specimen	ASTM E1980	73

Consult Neogard Product Data Sheets and Guide Specifications for a complete list of physical properties.

Use Area:

Pedestrian

Type:

Urethane

Features:

Single component
Aliphatic top coat
High elongation
High tensile properties

Benefits:

No additional mixing of components
Excellent color retention
Excellent crack bridging
Superior toughness

Ask us about Peda-Gard FC Aliphatic

Our Neogard Experts team is glad to tell you how Peda-Gard FC Aliphatic is the best coating system to protect your investment.

1-833-443-6735

Peda-Gard FC Aliphatic System Build

Before application, always check Neogard Product Data Sheets and Guide Specifications for mixing instructions and other important information.

Seed and Lock

Seed and Backroll

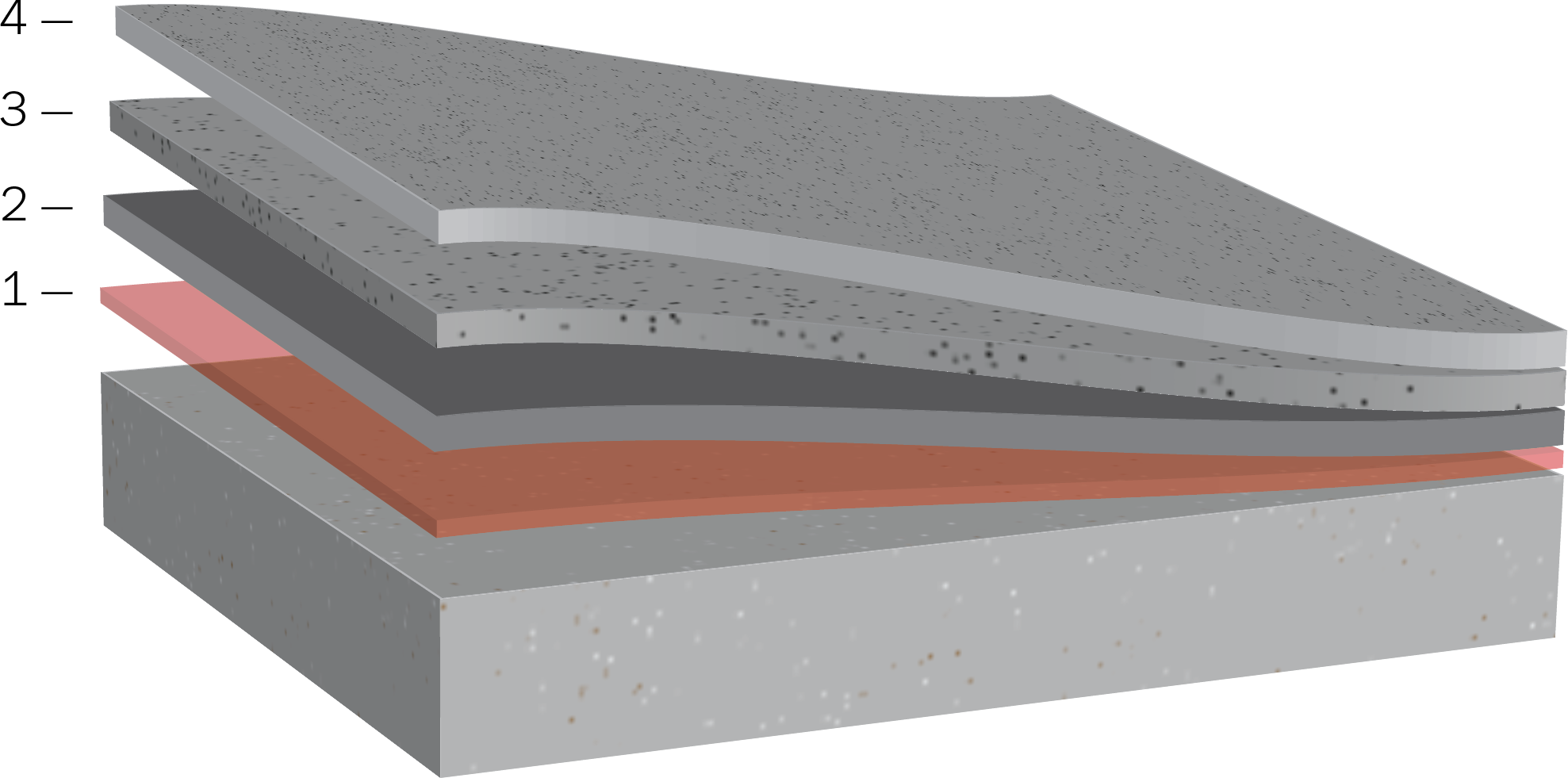

Peda-Gard FC Aliphatic Seed and Lock

Coat	Product	Coverage Rate	Mils WFT/DFT
4 - Topcoat	FC7530/FC7963	175 sf/gal	9/9
3 - Wear	FC7510/FC7961 + 7992 aggregate	200 sf/gal 10 lbs/100 sf	8/8
2 - Base	FC7500/FC7960	88 sf/gal	18/18
1 - Primer	7780/7781 7797/7798	300 sf/gal 300-500 sf/gal	NA

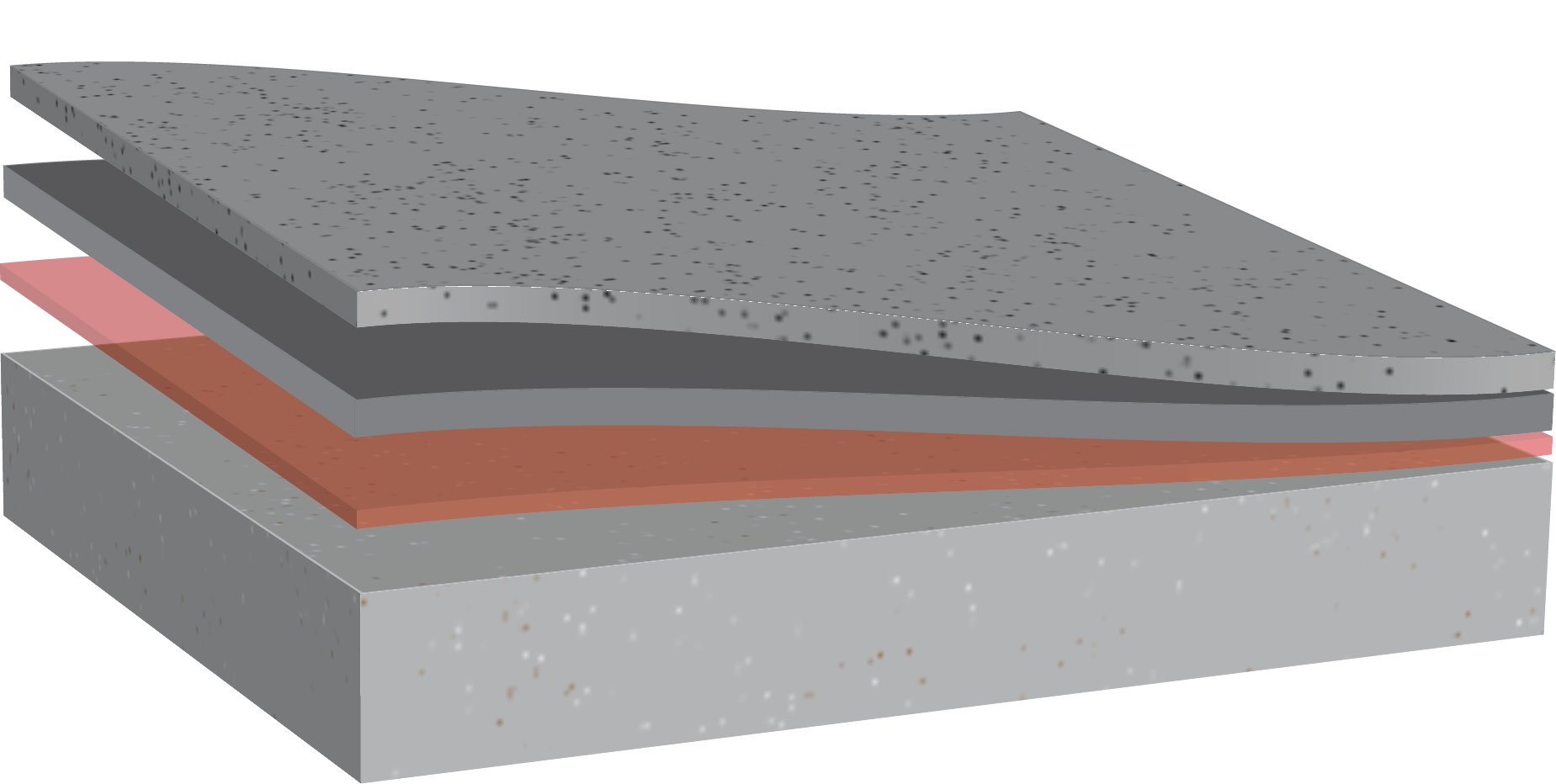

Peda-Gard FC Aliphatic Seed and Backroll

Coat	Product	Coverage Rate	Mils WFT/DFT
3 - Topcoat	FC7530/FC7963 + 7992 aggregate	106 sf/gal 10 lbs/100 sf	15/15
2 - Base	FC7500/FC7960	80 sf/gal	20/20
1 - Primer	7780/7781 7797/7798	300 sf/gal 300-500 sf/gal	NA

Safety Data Sheets (SDS)

FAQs

How long does Peda-Gard FC Aliphatic need to cure before opening to pedestrian traffic?

Typically the coating needs to cure 24 hours before opening to pedestrian traffic. In cooler temperatures this time may be 36 hours.

What type concrete curing compounds can be used with Peda-Gard FC Aliphatic?

It is best to water cure concrete or use a sodium silicate curing compound. The use of acrylic or other “film forming” compounds will create bond issues and must be removed.

What is the minimum temperature at which Peda-Gard FC Aliphatic can be applied?

The coating should be applied at temperatures that are 40°F/4°C and rising during application.

What is the maximum concrete temperature that Peda-Gard FC Aliphatic can be applied?

The coating should not be applied to deck surfaces that are =/> 100°F/38°C.

You can trust Peda-Gard FC Aliphatic in your next project

High-performance protection tested under the harshest environments. Peda-Gard FC Aliphatic was developed to endure intense pedestrian traffic while providing a seamless, durable protection against cracks and abrasion.
