Peda-Gard TS System

Single-component urethane system for applications under thinset tile

Peda-Gard TS is a urethane system for use on surfaces that are to receive a thinset tile application. The system provides for long-term water tightness and provides for positive adhesion of thinset tile systems.

Product Specifications
Application Methods
Product Literature
Technical Documents
FAQs

System Overview

Peda-Gard TS uses our proven 7430 single-component urethane to provide a waterproofing barrier below thin-set tile. The 7992 sand aggregate gives the system a profile that grips the thinset mortar, ensuring the tile won’t move.

Selected Physical Properties

Product	Description	Test Method	Results
7430 urethane	Water Resistance	ASTM D471	< 3% (7 days)
7430 urethane	Tensile Strength	ASTM D412	2,500 psi
7430 urethane	Elongation	ASTM D412	400%

Consult Neogard Product Data Sheets and Guide Specifications for a complete list of physical properties.

Use Area:

Pedestrian

Type:

Urethane

Features:

High elongation base coat
Reduced application steps
Textured top coat

Benefits:

Provides excellent crack bridging properties
Increased production
Provides excellent adhesion of thin set systems

Ask us about Peda-Gard TS

Our Neogard Experts team is glad to tell you how Peda-Gard TS is the best coating system to protect your investment.

1-833-443-6735

Peda-Gard TS

Before application, always check Neogard Product Data Sheets and Guide Specifications for mixing instructions and other important information.

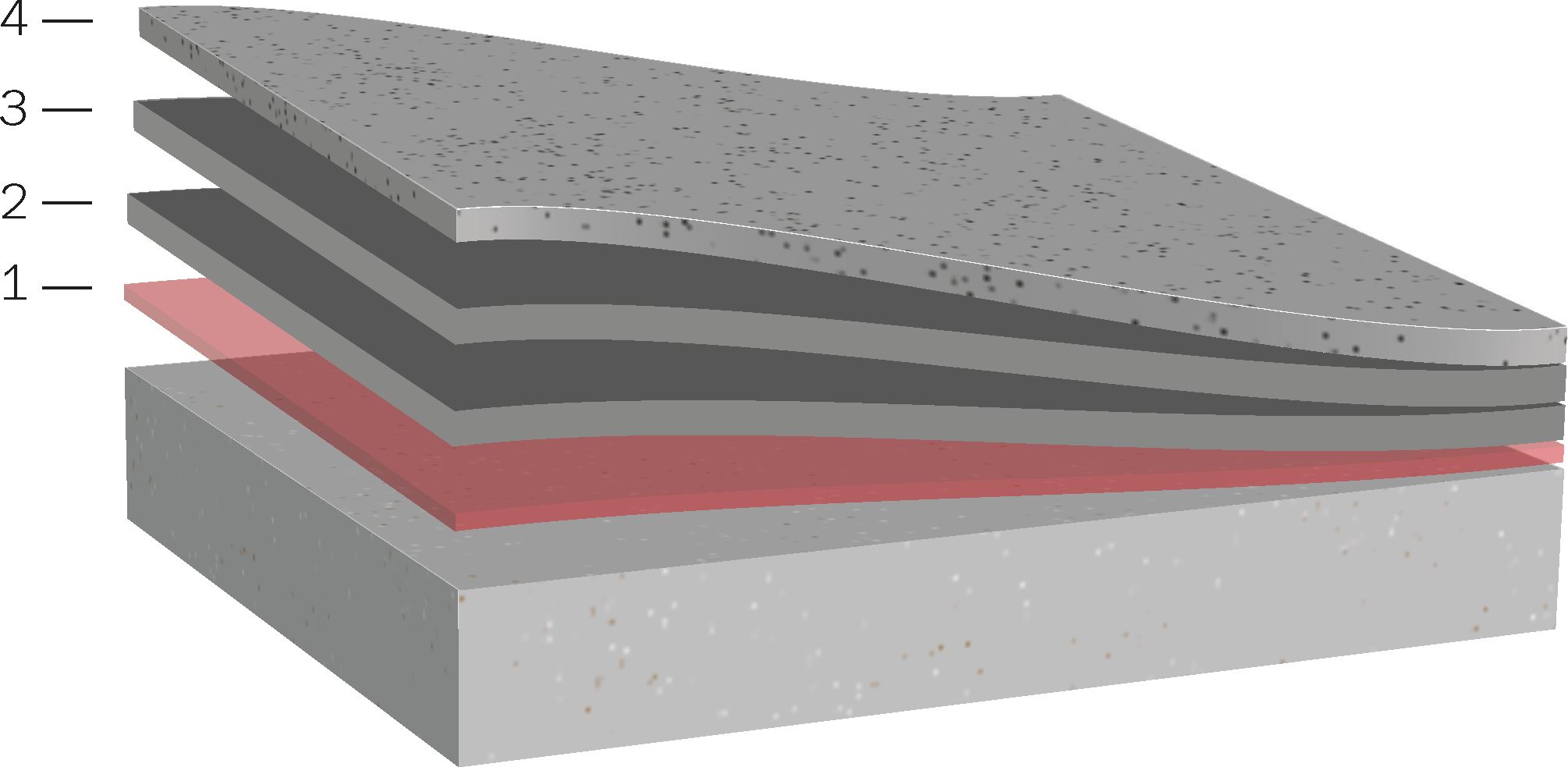

Peda-Gard TS

Coat	Product	Coverage Rate	Mils WFT/DFT
4 - Wear	7430 series + 7992 aggregate	200 sf/gal 10 lbs/100 sf	8/6
3 - 2nd Base	7430 series	80 sf/gal	20/15
2 - 1st Base	7430 series	80 sf/gal	20/15
1 - Primer	7780/7781 7797/7798	300 sf/gal 300-500 sf/gal	NA

Product Literature

Files may be downloaded individually or in a submittal package. Choose a language to select a file. Select one file and click the download button to the right, or select multiple files and click the “Download Selected” button below.

Technical Documents

selected

Safety Data Sheets (SDS)

FAQs

How long does Peda-Gard TS needs to cure before opening to pedestrian traffic?

Typically the coating needs to cure 48 hours before opening to pedestrian traffic. In cooler
temperatures this time may be 72 hours.

What type concrete curing compounds can be used with Peda-Gard TS?

It is best to water cure concrete or use a sodium silicate curing compound. The use of acrylic
or other “film forming” compounds will create bond issues and must be removed.

What is the minimum temperature at which Peda-Gard TS can be applied?

The coating should be applied at temperatures that are 40°F/4°C and rising during application.

What is the maximum concrete temperature that Peda-Gard TS can be applied?

The coating should not be applied to deck surfaces that are =/> 100°F/38°C.

You can trust Peda-Gard TS in your next project

High-performance protection tested under the harshest environments. Peda-Gard TS was developed to endure intense pedestrian traffic while providing a seamless, durable protection against cracks and abrasion.
