Neoflex System | Elastomeric Coating

Durable Exterior Wall Elastomeric coating

Neoflex is a 100% acrylic, elastomeric, anti-carbonation, waterproof wall coating for exterior surfaces.

Product Specifications
Application Methods
Product Literature
Technical Documents
FAQs

System Overview

Neoflex elastomeric coating can be applied using rollers or spray equipment over concrete, EIFS, masonry, and stucco. It is available in smooth and textured grades, and can be tinted to match nearly any color. Neoflex provides seamless waterproofing performance combined with a beautiful appearance, and high performance for a reasonable total cost of ownership.

Selected Physical Properties

Product	Description	Test Method	Results
Neoflex 7100	Elongation	ASTM D2370	300%
Neoflex 7100	Water Vapor Permeance	ASTM D1653	20 perms at 10 mils
Neoflex 7100	Flexibility, 1/8" Mandrel	ASTM D522	No Cracking

Consult Neogard Product Data Sheets and Guide Specifications for a complete list of physical properties.

Use Area:

Exterior walls

Type:

100% Acrylic

Features:

Elastomeric
Anti-Carbonation
100% Acrylic
Tintable

Benefits:

Bridges cracks, provides waterproofing
Protects concrete and embedded steel from carbon penetration
Provides highest level of performance available
Can be tinted to any color

Ask us about Neoflex

Our Neogard Experts team is glad to tell you how Neoflex is the best coating system to protect your investment.

1-833-443-6735

Neoflex System Build

Before application, always check Neogard Product Data Sheets and Guide Specifications for mixing instructions and other important information.

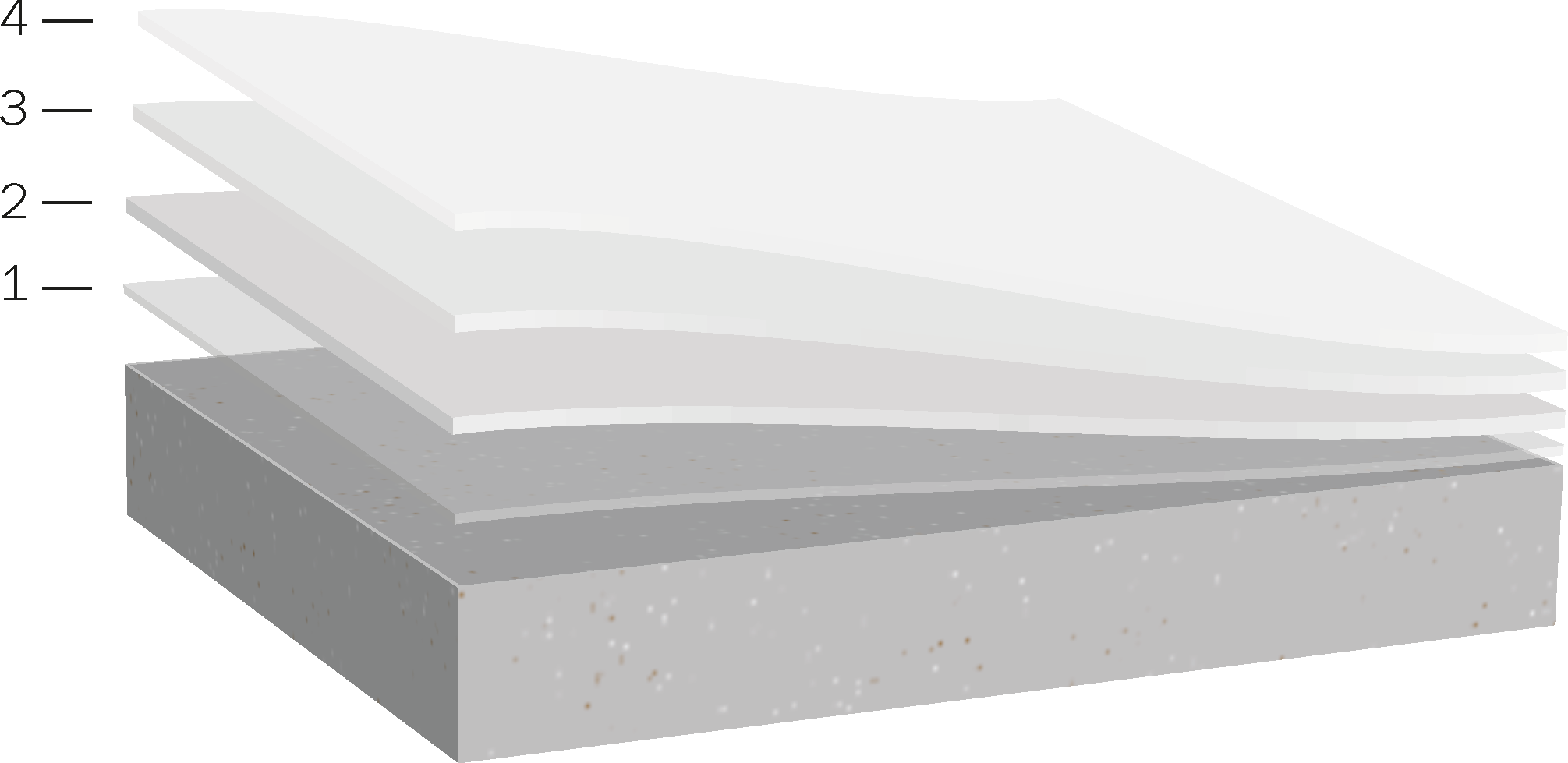

Neoflex

Coat	Product	Coverage Rate	Mils DFT
4 - Optional Topcoat	7170 series	75-100 sf/gal	8 to 10
3 - 2nd Coat	7100 series	80 sf/gal	8 to 10
2 - 1st Coat	7100 series	80 sf/gal	8 to 10
1 - Primer	Dependent on substrate; consult Guide Specification.

One-coat system qualifies for 5-year warranty; two-coat system qualifies for 10-year warranty. Contact your Neogard account manager for details.

Product Literature

Files may be downloaded individually or in a submittal package. Choose a language to select a file. Select one file and click the download button to the right, or select multiple files and click the “Download Selected” button below.

Technical Documents

selected

Safety Data Sheets (SDS)

FAQs

Can Neoflex be sprayed?

Yes—Neoflex can be applied with typical painting spray equipment. Contact Neogard for details.

Is Neoflex breathable?

Yes, Neoflex has a high perm rating of 20 perms (ASTM D1653).

Is Neoflex flexible?

Yes, Neoflex has 300% elongation.

Can Neoflex be used to coat balcony soffits?

No. As an elastomeric coating, Neoflex should not be used on the underside of balconies.

You can trust Neoflex in your next project

High-performance protection tested under the harshest environments. Neoflex was developed to provide seamless waterproofing performance combined with a beautiful appearance, and high performance for a reasonable total cost of ownership.
